RL3F01A

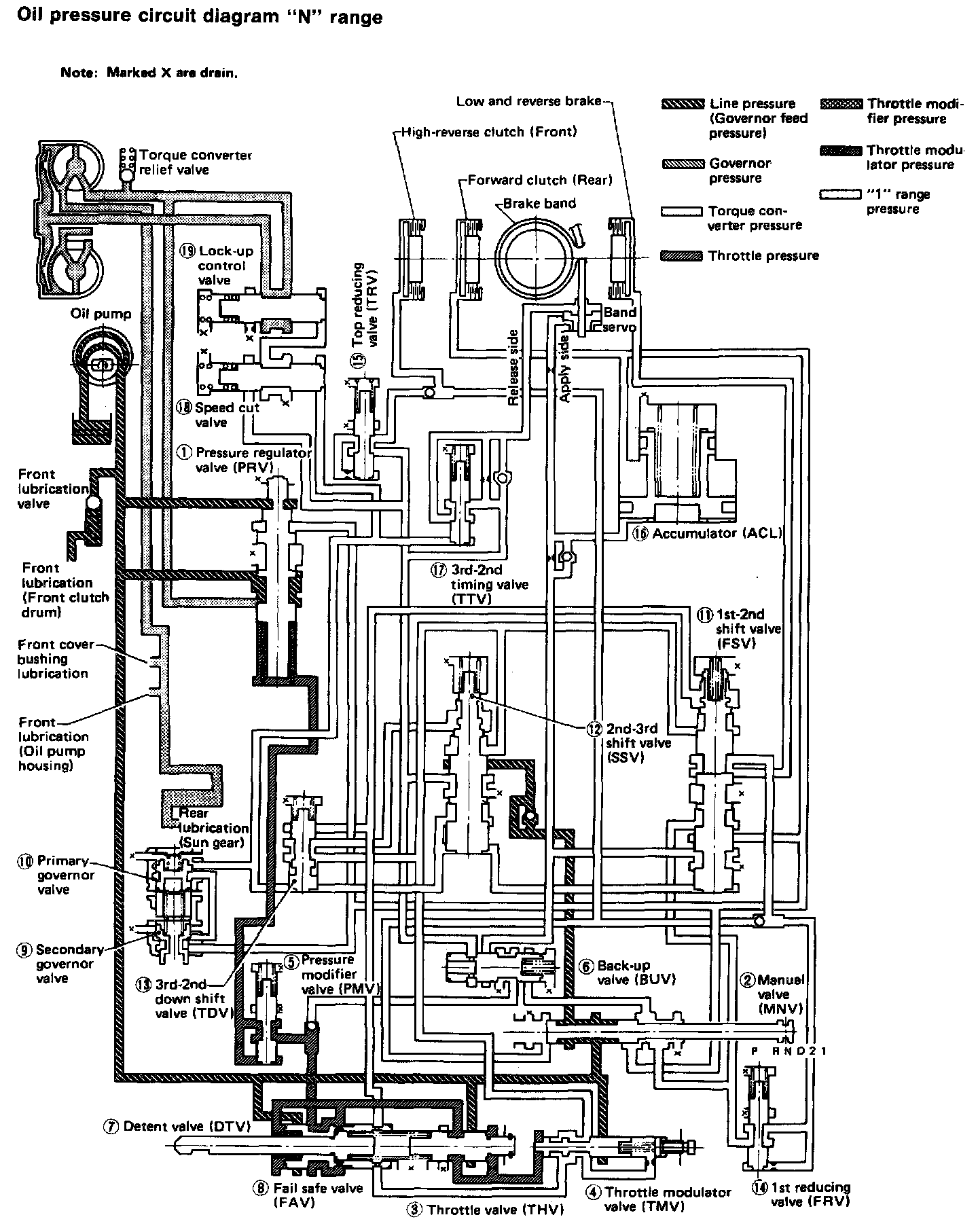

Hydraulic Control Circuits:

OIL CHANNELS
Oil channels which connect components are located in areas shown below.

OIL CHANNELS IN OIL PUMP HOUSING

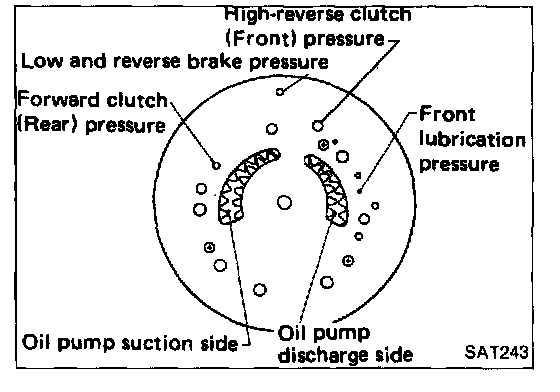

Oil Pump Housing Side:

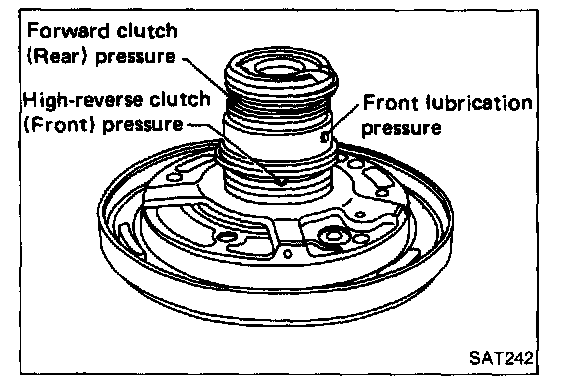

Oil Pump Plate Side:

OIL CHANNELS IN TRANSMISSION CASE

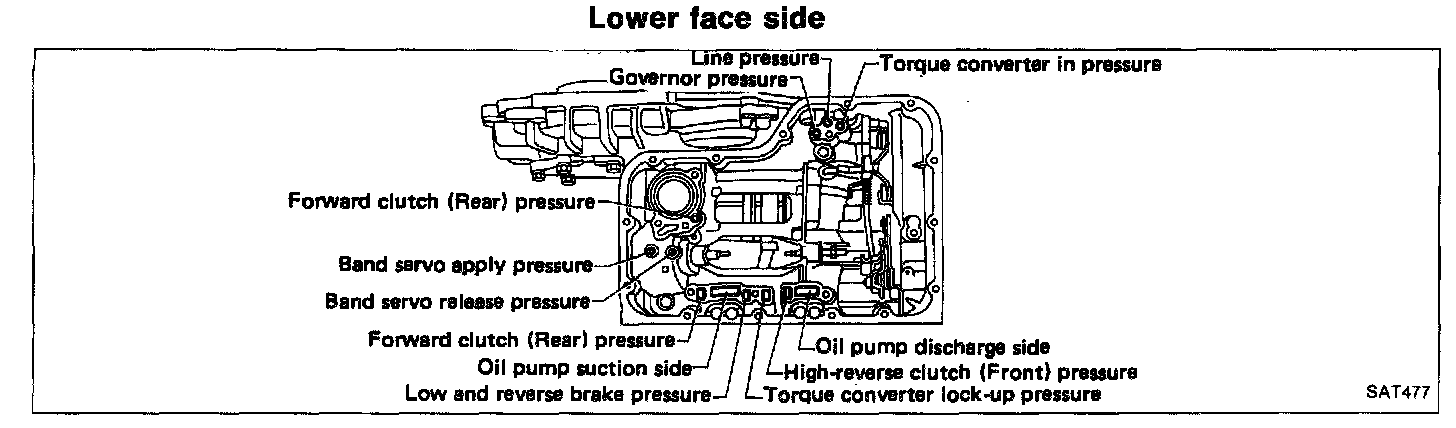

Lower Face Side:

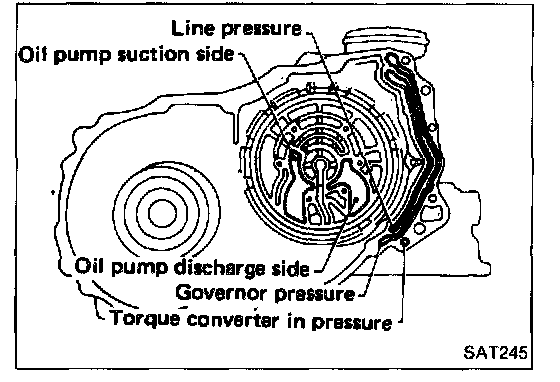

Converter Housing Attaching Side:

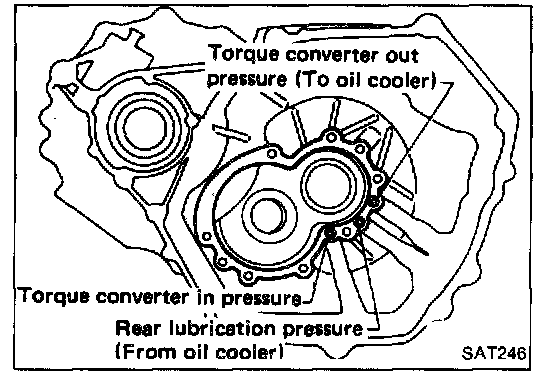

Oil Channels In Converter Housing:

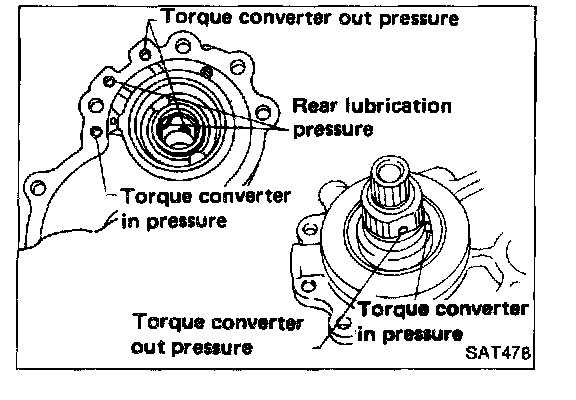

Oil Channels In Front Cover:
