Home >> Nissan-Datsun >> 1992 >> NX L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Cruise Indicator Lamp Blinks

Cruise Indicator Lamp Blinks

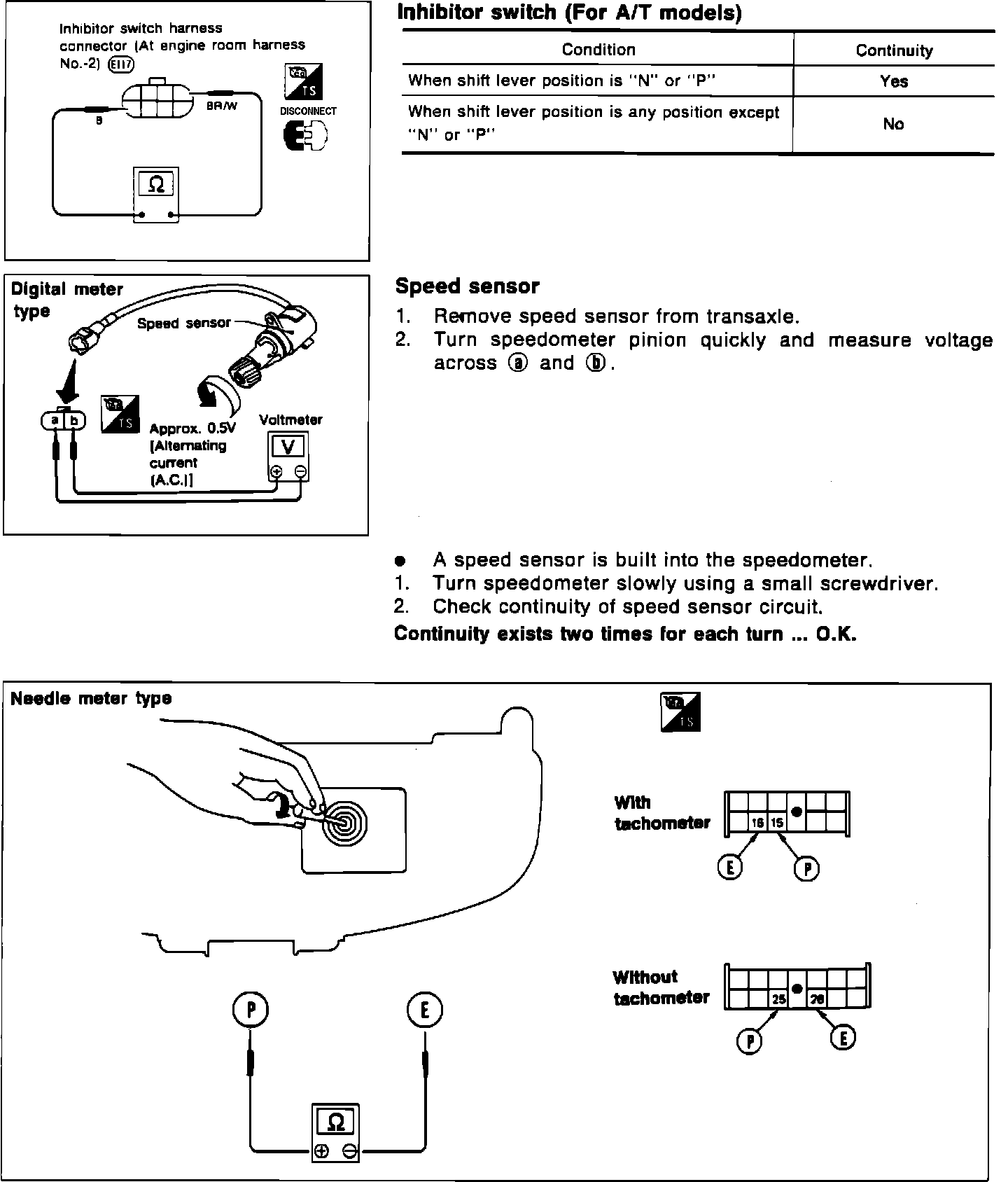

Fig. 28 Electrical Component Check (Part 1 Of 2).:

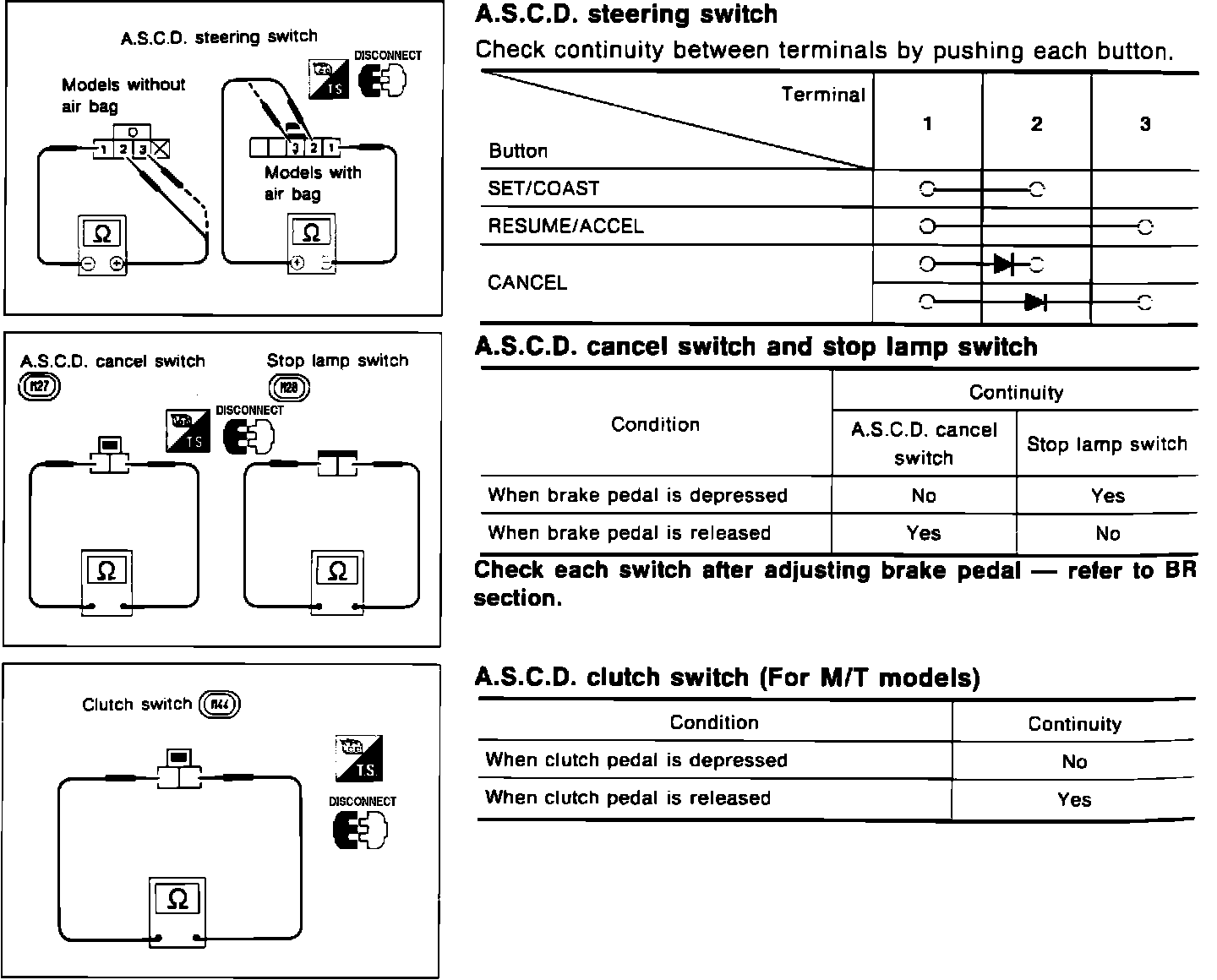

Fig. 28 Electrical Component Check (Part 2 Of 2).:
