Home >> Nissan-Datsun >> 1992 >> NX L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> Wiring Diagram

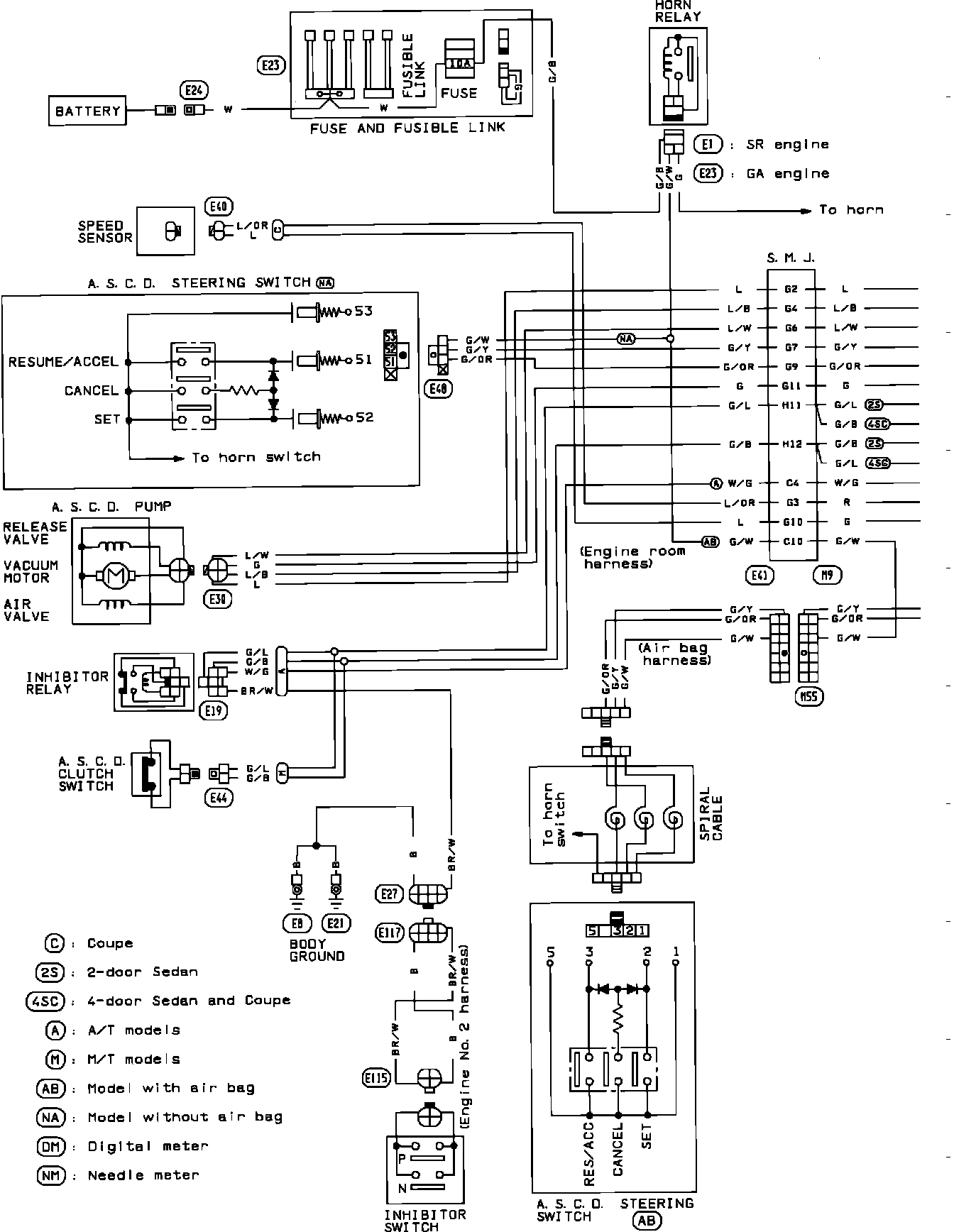

Wiring Diagram

Automatic Speed Controls:



Cruise Control (A.S.C.D.):
