Parking Brake Control: Adjustments

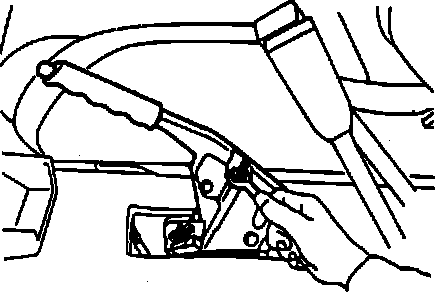

Fig. 9 Parking Brake Adjustment.:

1. Pull parking brake lever with a force of 44 lbs. and ensure lever travels 7-11 notches on NX Coupe, Pulsar and Sentra, 9-11 notches on 1989--90 Stanza or 6-9 motches on 1990-93 300ZX.
2. Rotate adjuster, Fig. 9 until proper stroke is obtained, then tighten locknut.
