Symptom Related Diagnostic Procedures

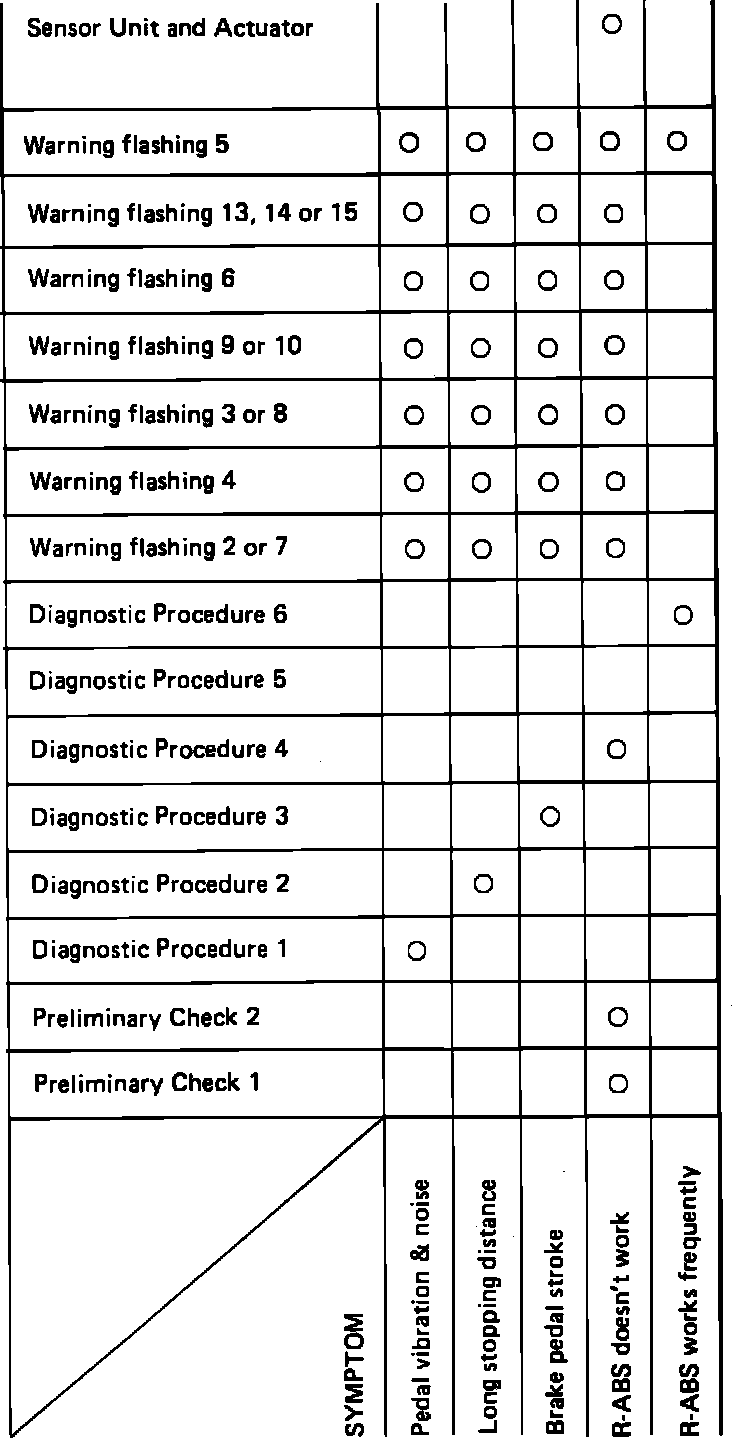

Fig. 4 Four Wheel ABS System Troubleshooting Chart.:

The electronic control unit accepts input signals from sensors and drives actuators. It is essential that both input and output signals are stable and accurate. Refer to Fig. 4, for symptom troubleshooting.
