Diagnostic Test Procedure 8
Diagnostic Test Procedure 8

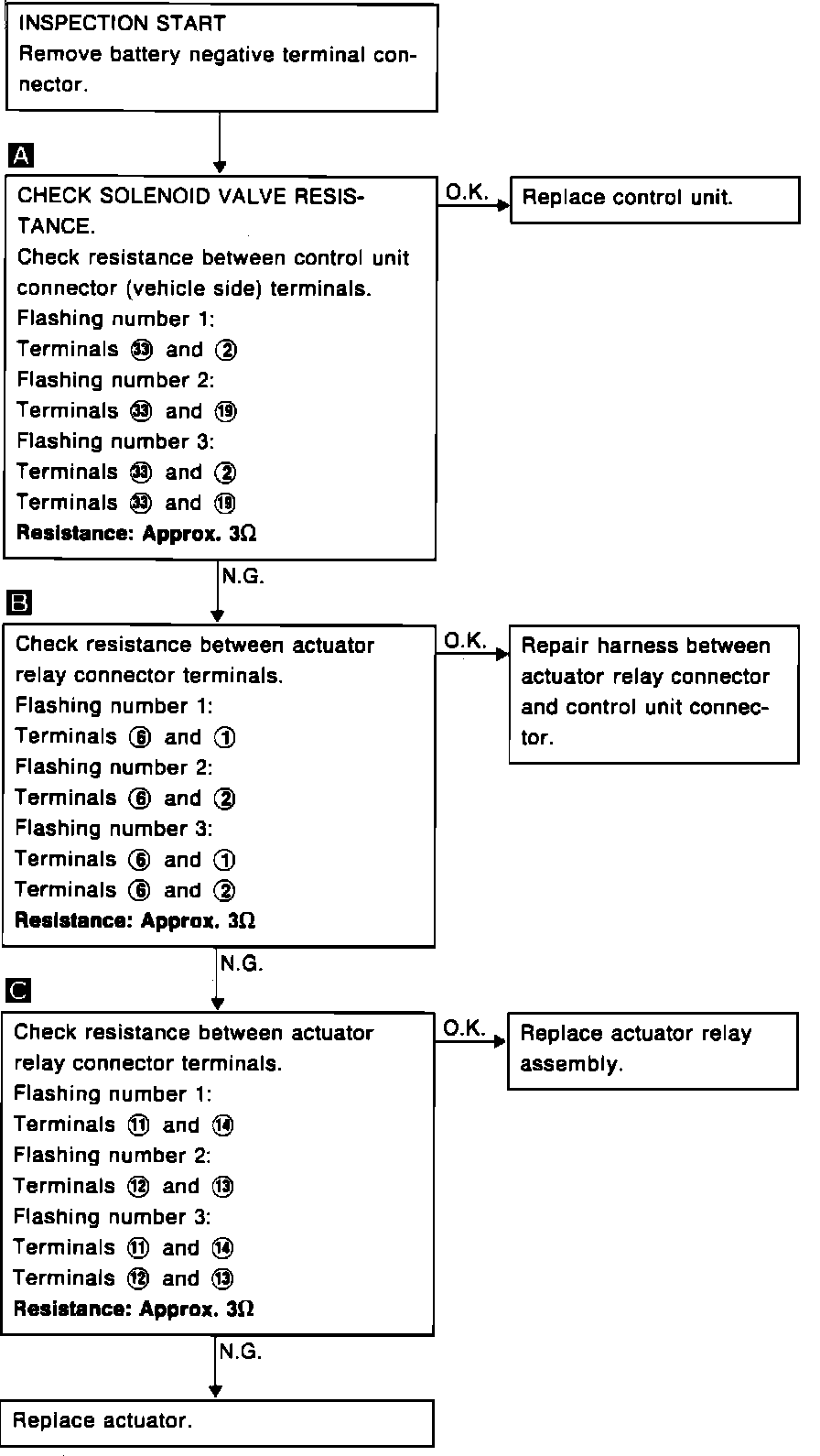

Fig. 51 Diagnostic Procedure 8 (Actuator Solenoid, L.E.D. Flashes Nos. 1--3).:
