Diagnostic Test Procedure 14

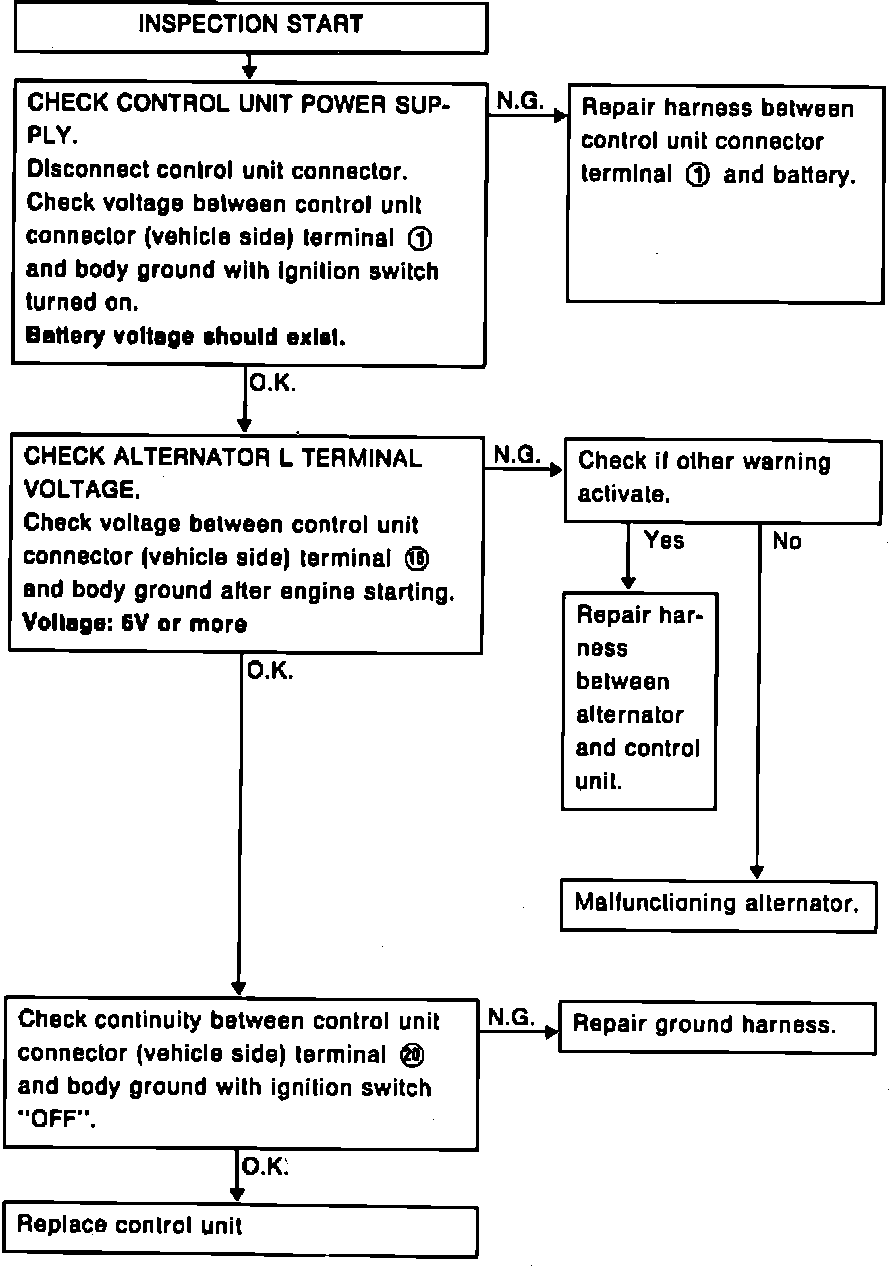

Fig. 57 Diagnostic Procedure 14 (Control Unit Or Power Supply & Ground Circuit, L.E.D. Flashes But Comes Off).:
