Diagnostic Test Procedure 12
Diagnostic Test Procedure 12

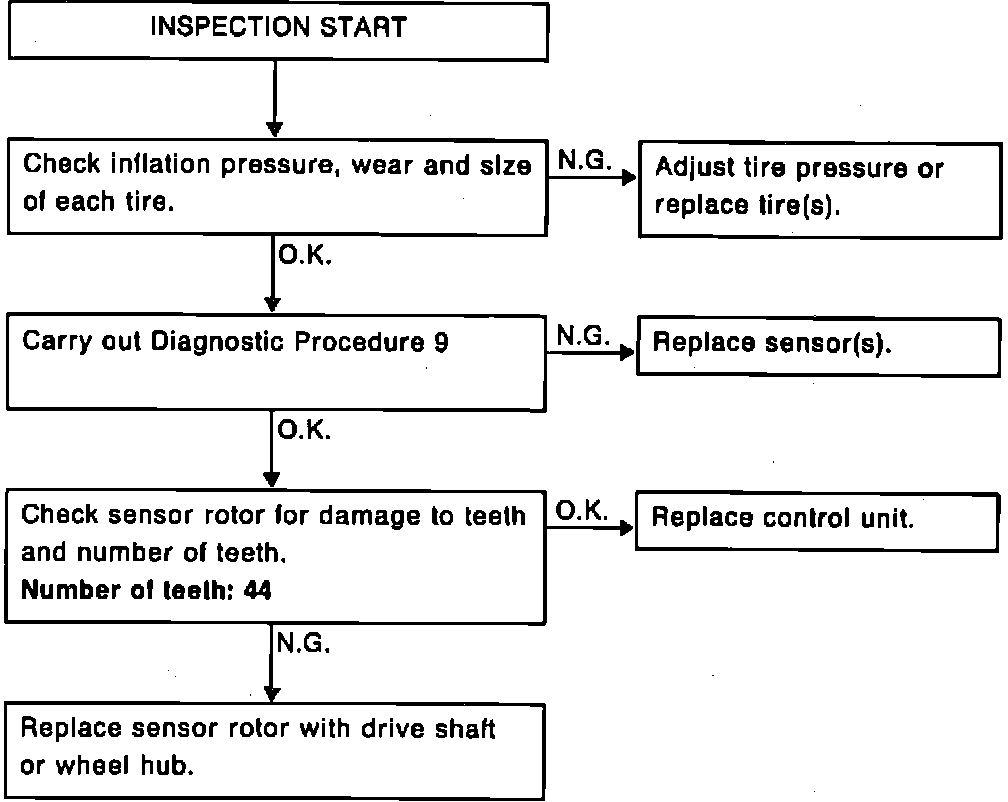

Fig. 55 Diagnostic Procedure 12 (Sensor & Sensor Rotor, L.E.D. Flashes No. 15).:
