Diagnostic Test Procedure 11
Diagnostic Test Procedure 11

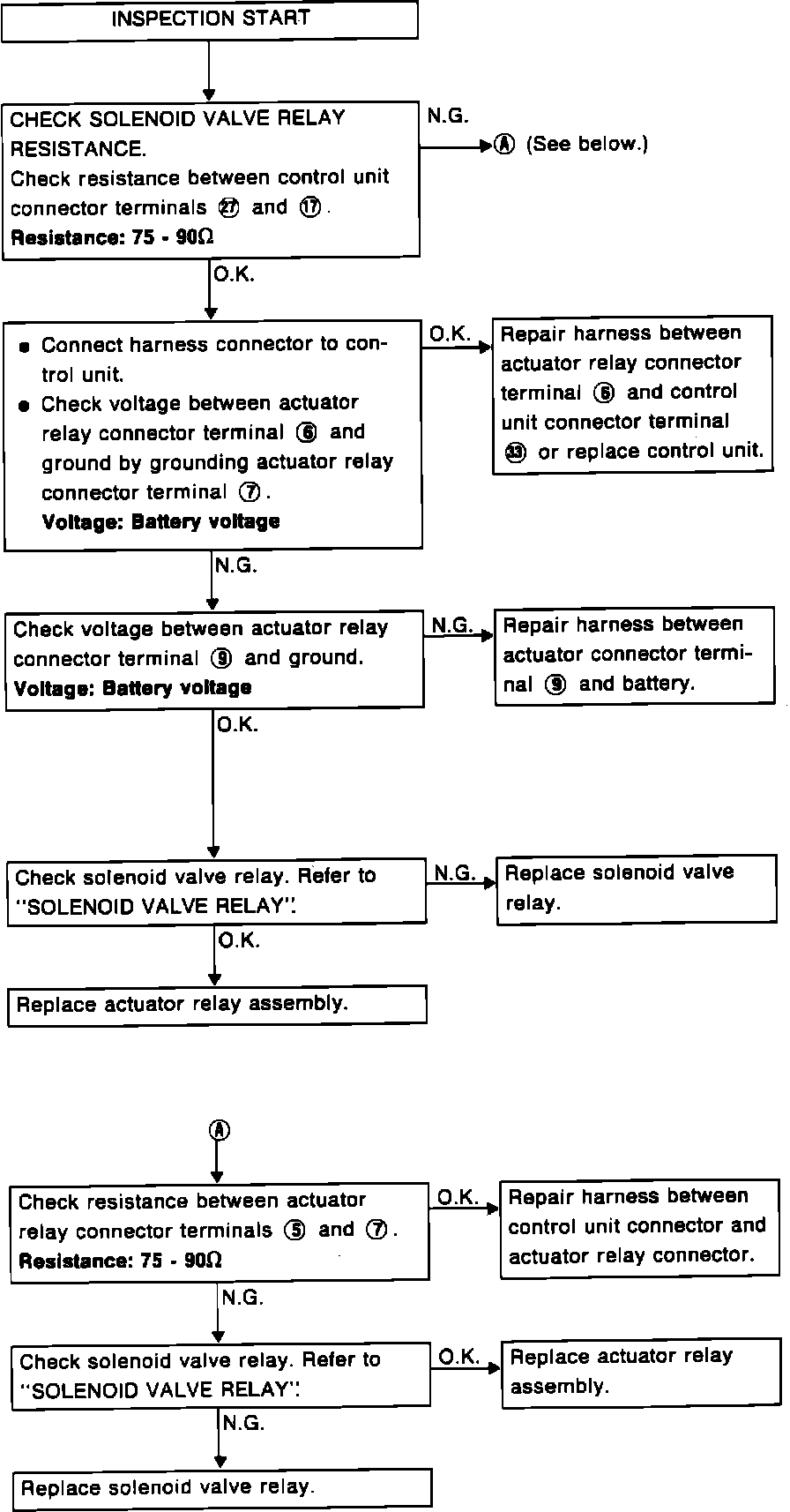

Fig. 54 Diagnostic Procedure 11 (Actuator Solenoid Valve Relay, L.E.D. Flashes No. 10).:
