Diagnostic Test Procedure 1

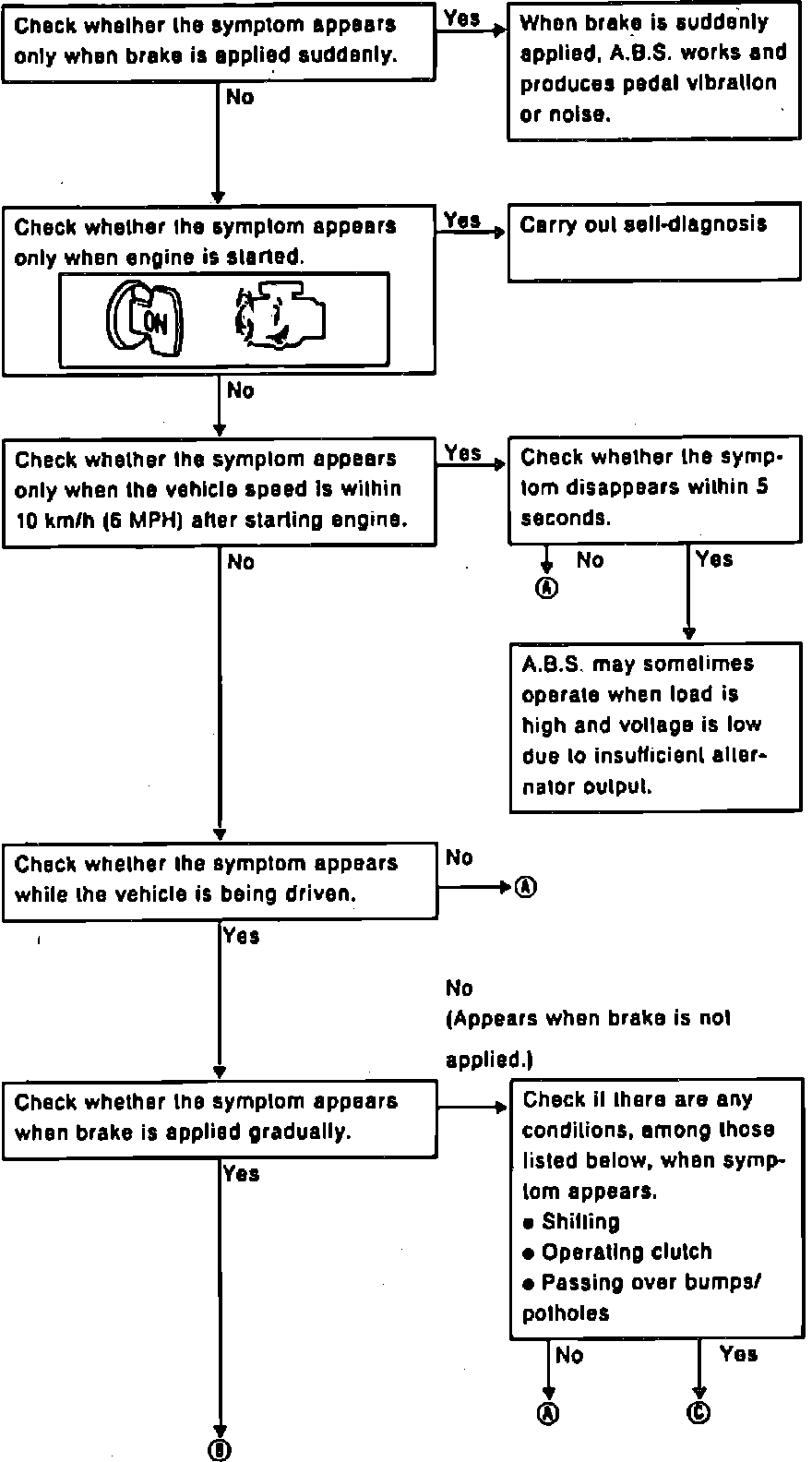

Fig. 44 Diagnostic Procedure 1 (Pedal Vibration & Noise, Part 1 Of 2). Sentra/NX Coupe:

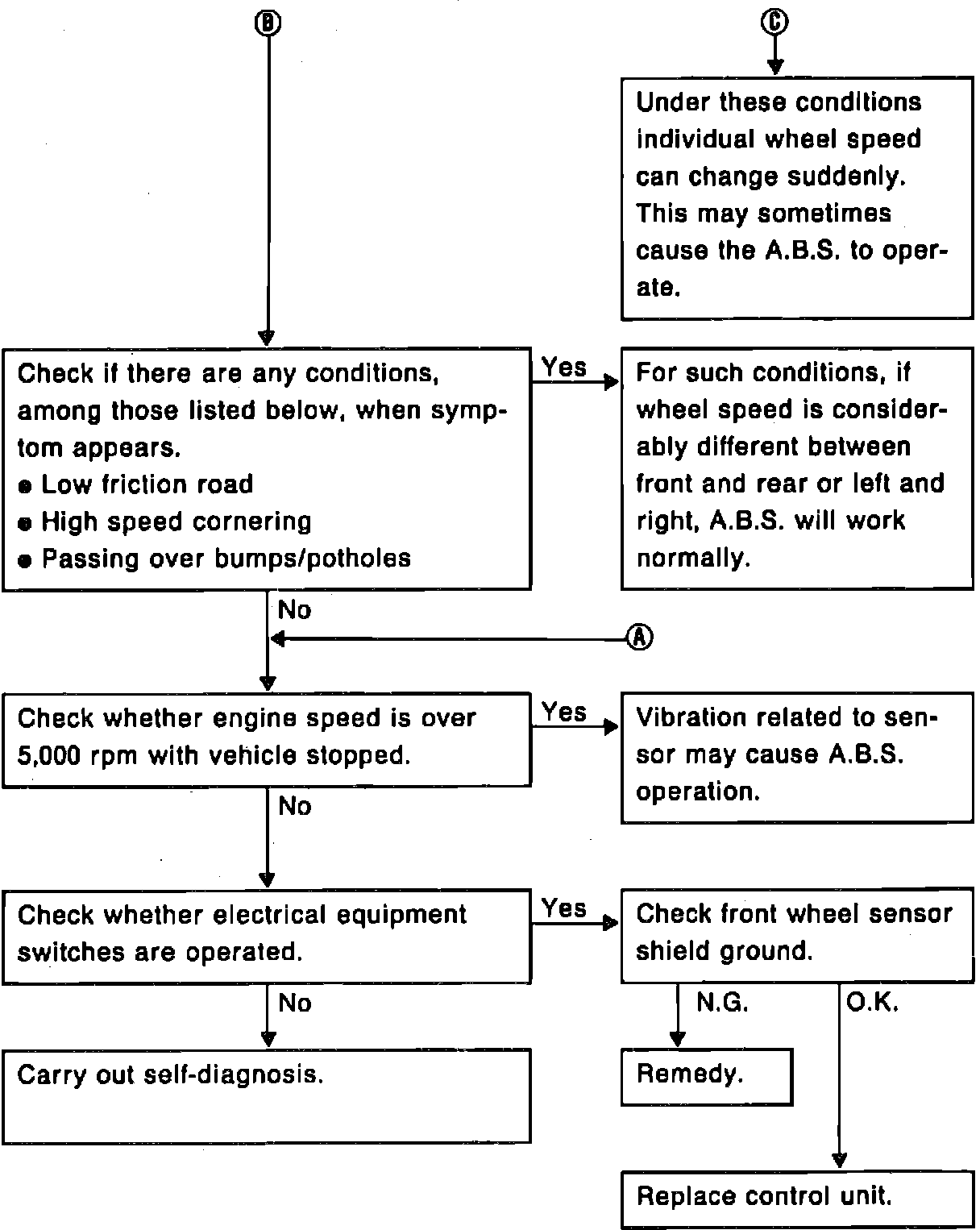

Fig. 44 Diagnostic Procedure 1 (Pedal Vibration & Noise, Part 2 Of 2). Sentra/NX Coupe:
