DTC 43

The ECU detected an open or short in the circuit.

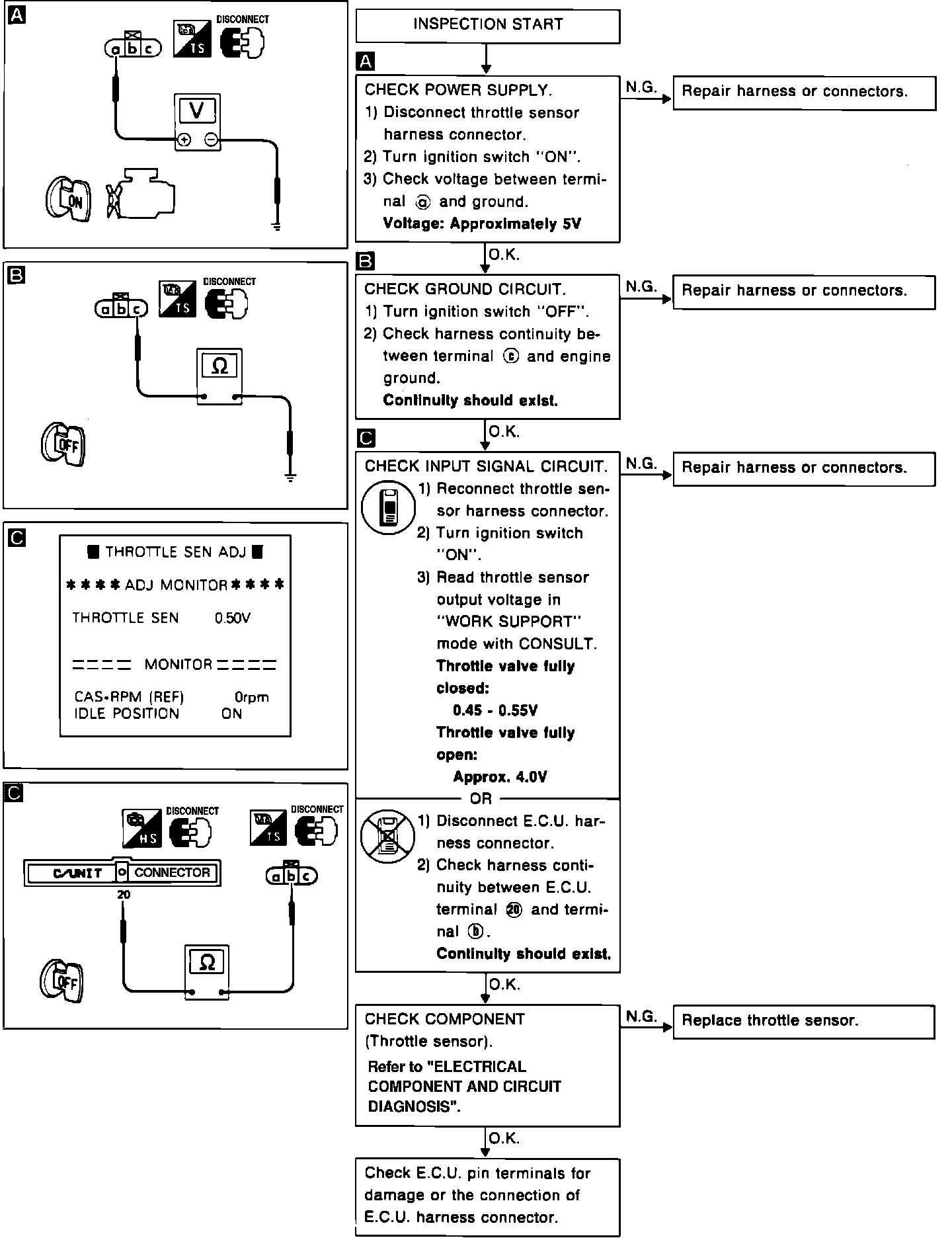

Code 43 Throttle Sensor Circuit Diagnosis:

DIAGNOSTIC CHART IMAGE

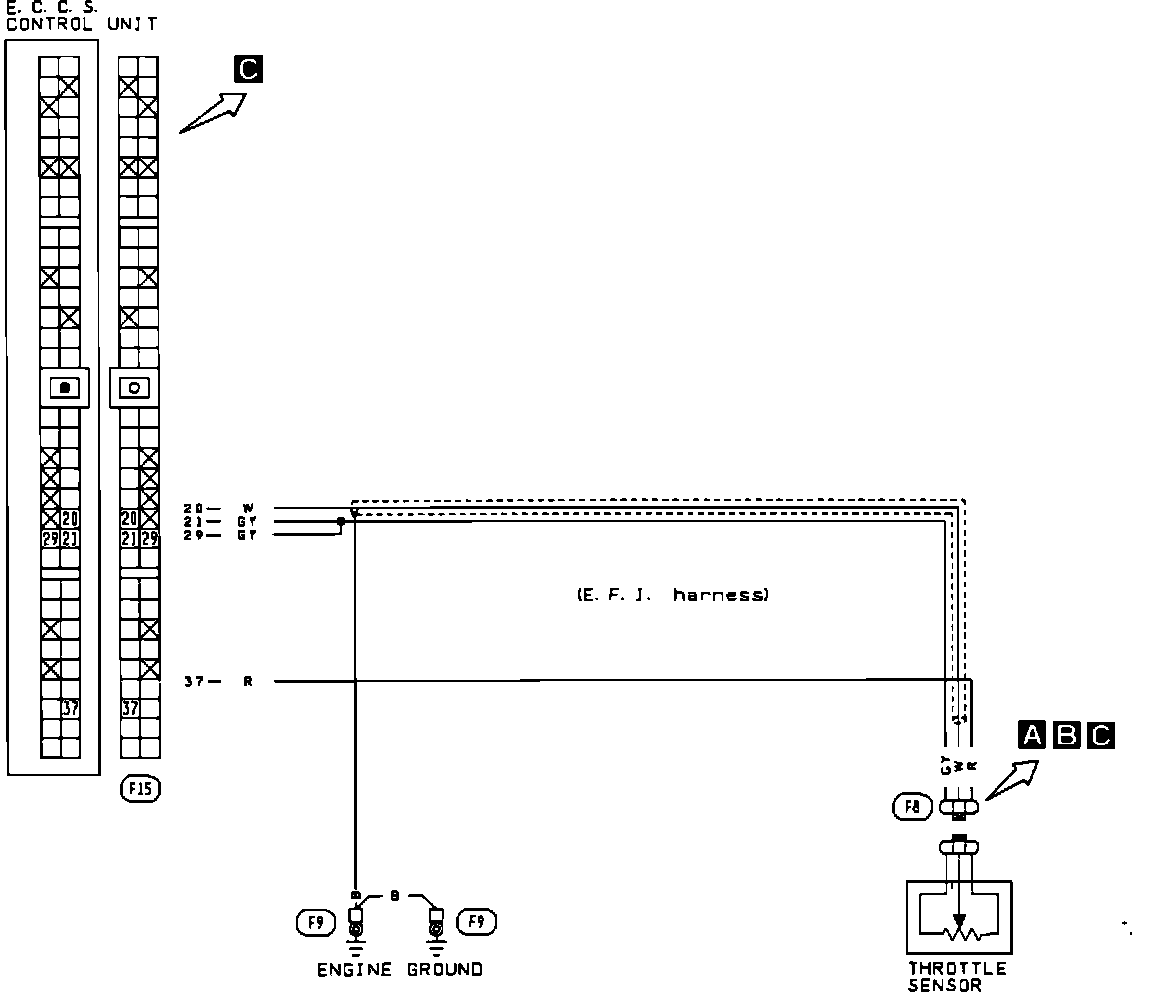

Code 43 Throttle Sensor Circuit:

CIRCUIT DIAGRAM IMAGE

Throttle Sensor Connector:

SENSOR CONNECTOR IMAGE

Final Check:

FINAL CHECK IMAGE
