DTC 35

The ECU detected an open in the circuit.

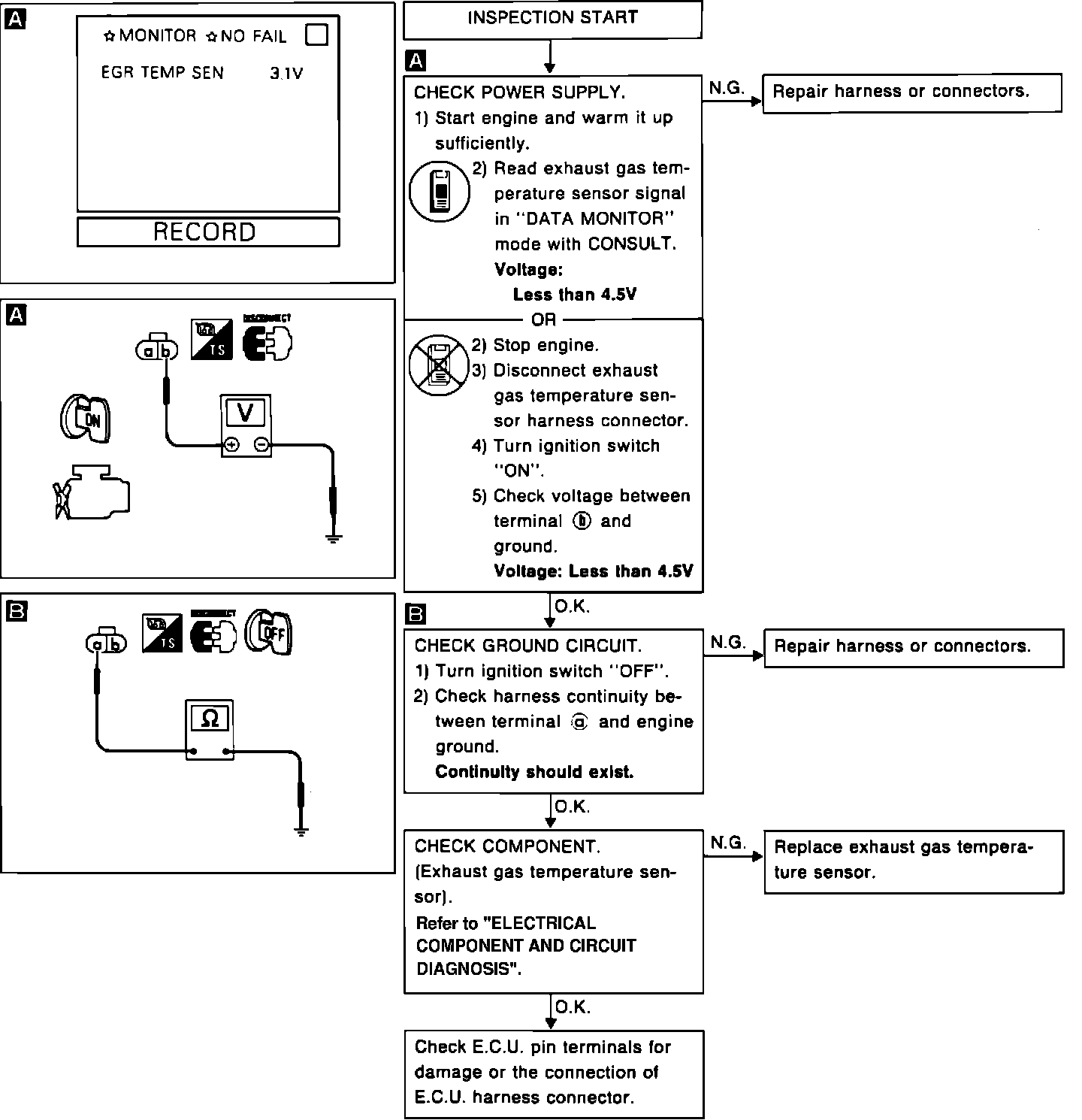

Code 35 Exhaust Gas Temperature Sensor Circuit Diagnosis:

DIAGNOSTIC CHART IMAGE

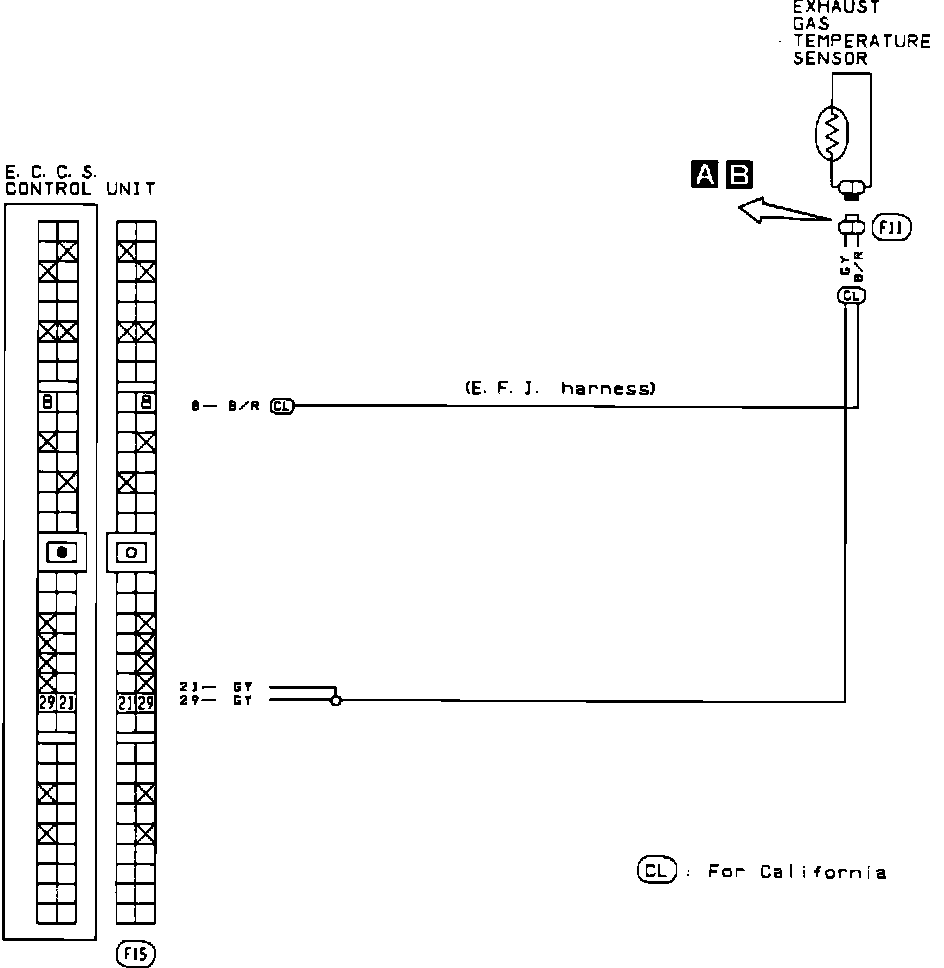

Code 35 Exhaust Gas Temperature Sensor Circuit:

CIRCUIT DIAGRAM IMAGE

Exhaust Gas Temperature Sensor Harness Connector:

SENSOR CONNECTOR IMAGE

Final Check:

FINAL CHECK IMAGE
