DTC 33

The ECU detected an open in the circuit

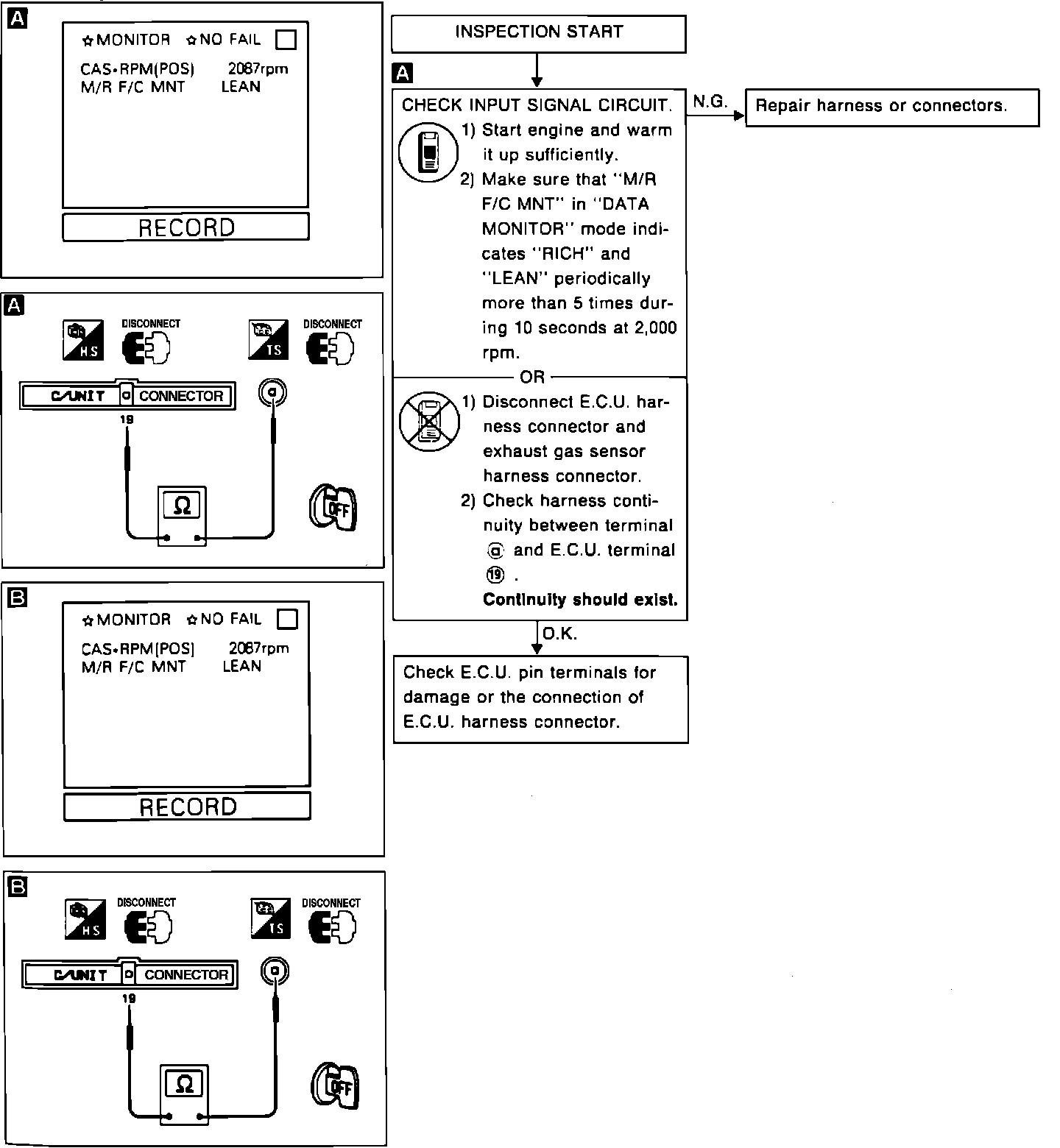

Code 33 Oxygen Sensor Circuit Diagnosis:

DIAGNOSTIC CHART IMAGE

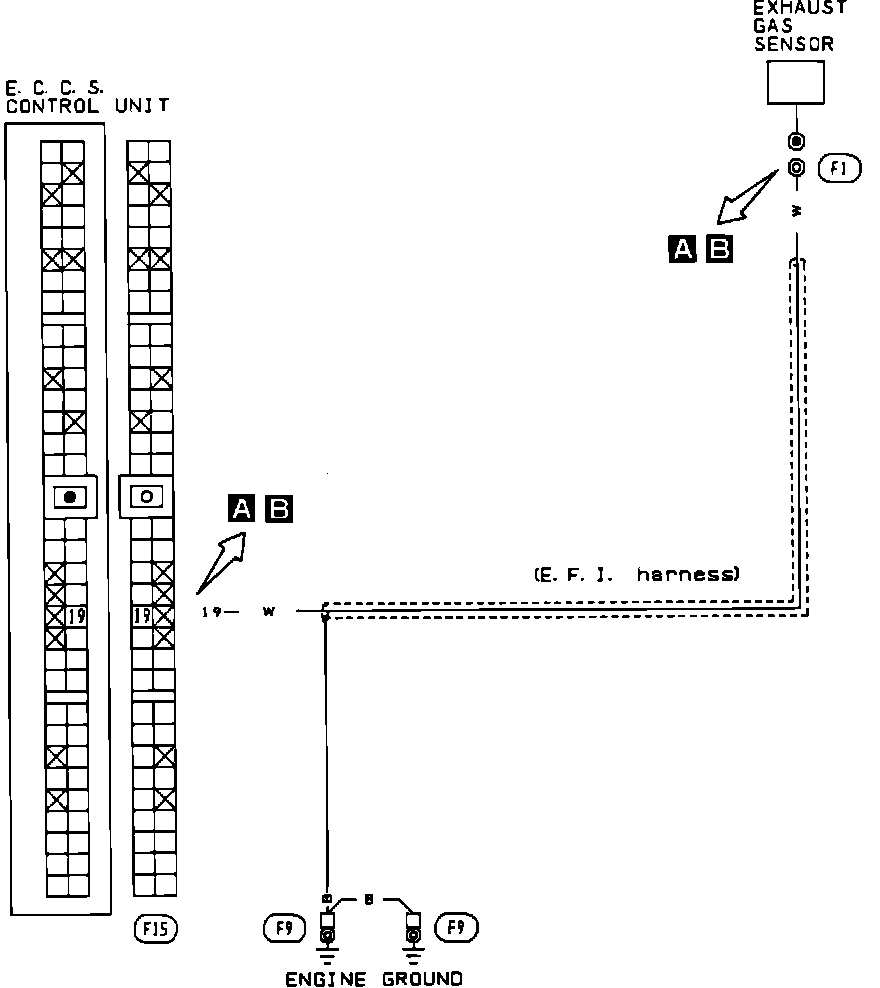

Code 33 Oxygen Sensor Circuit:

CIRCUIT DIAGRAM IMAGE

Code 33 Oxygen Sensor Connector:

SENSOR CONNECTOR IMAGE

Final Check Image:

FINAL CHECK IMAGE
