DTC 13

The ECU detected an open or shorted circuit. (An abnormally high or low output voltage is entered.)

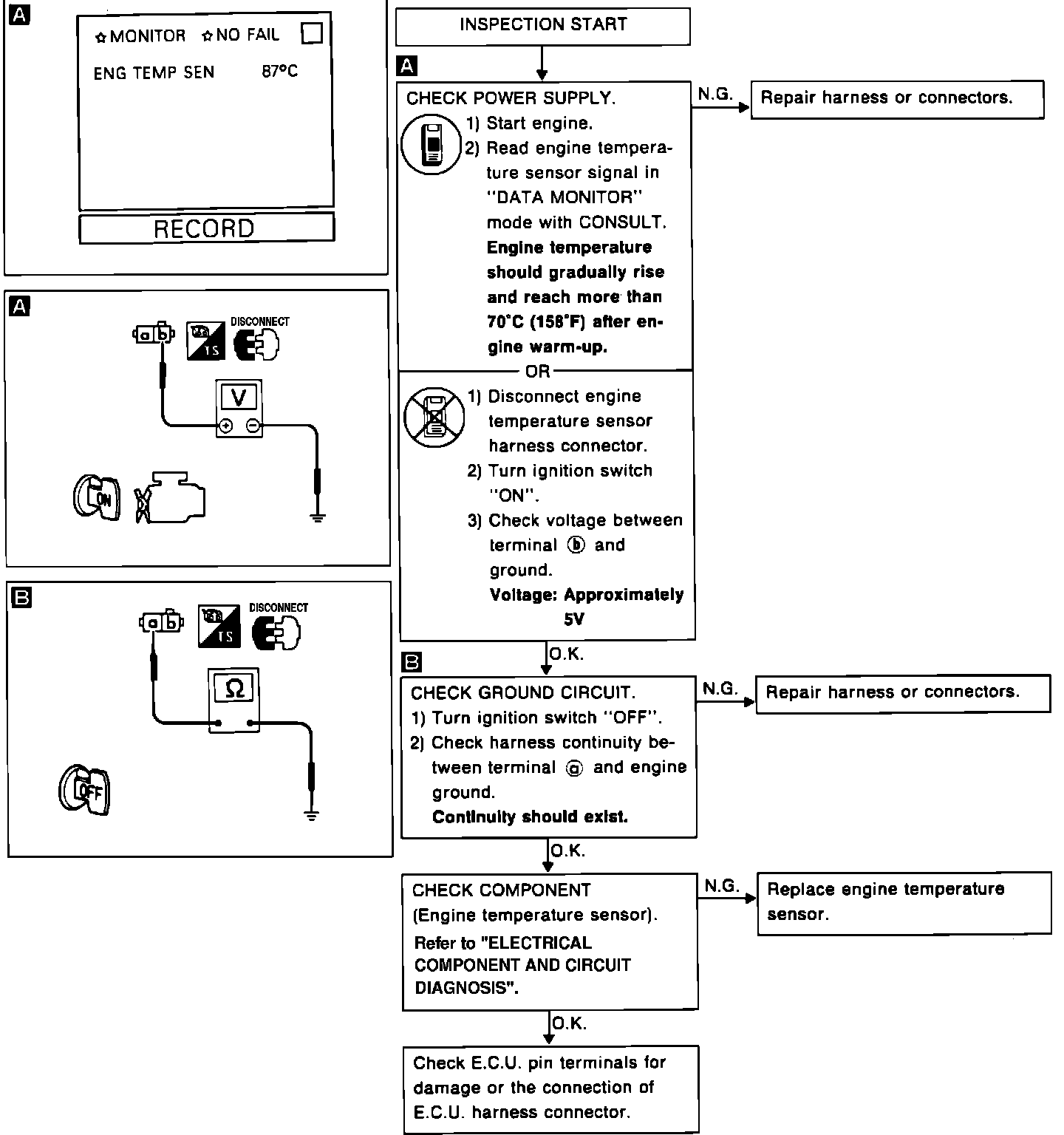

Code 13 Engine Temperature Sensor Circuit Diagnosis:

DIAGNOSTIC CHART IMAGE

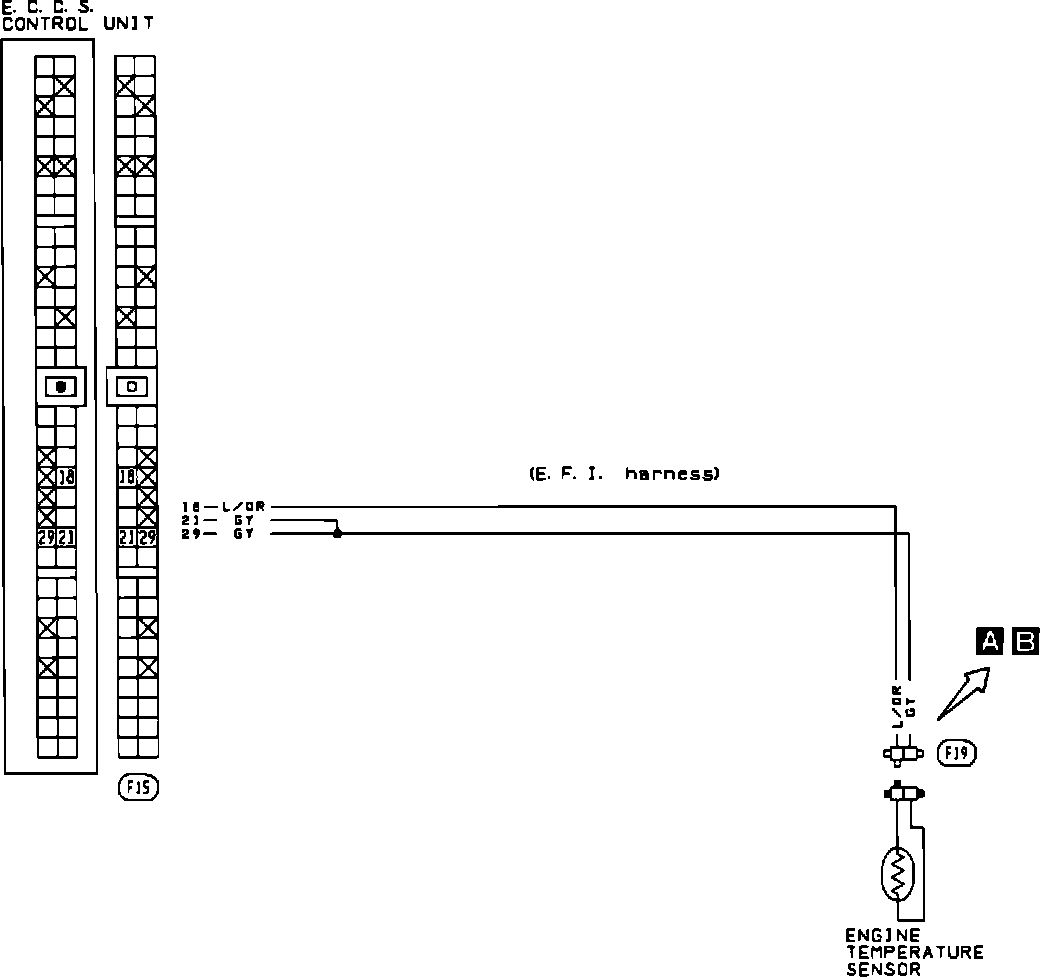

Code 13 Engine Temperature Circuit:

CIRCUIT DIAGRAM IMAGE

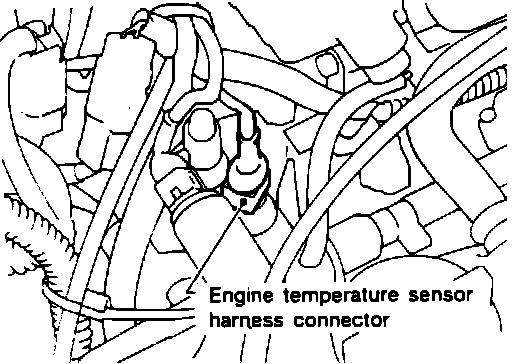

Code 13 Electrical Connector:

ELECTRICAL CONNECTORS IMAGE

Final Check:

FINAL CHECK IMAGE
