Shift Linkage: Adjustments

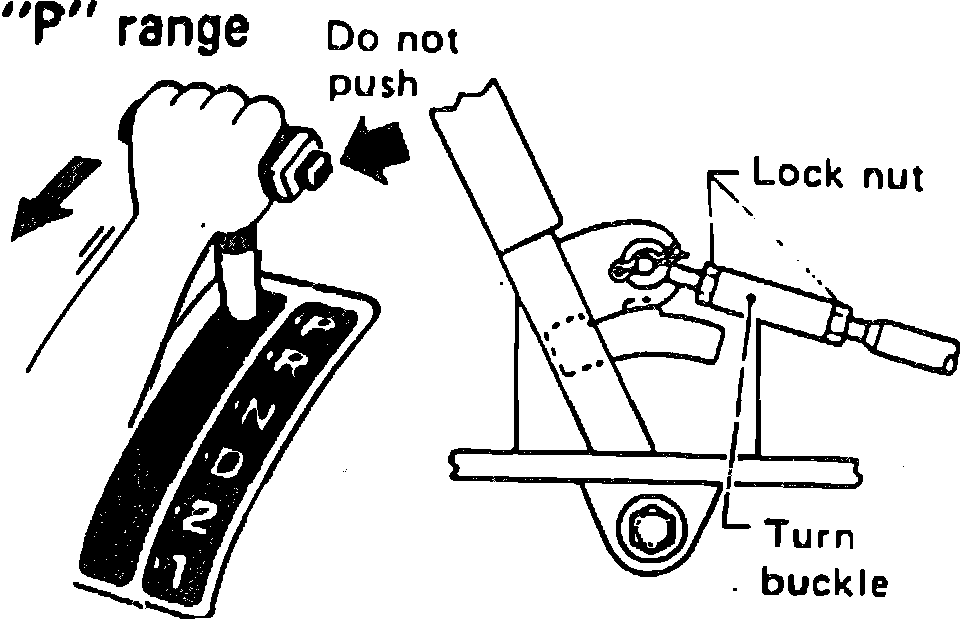

Fig. 3 Manual Linkage Adjustment.:

1. Place selector lever in Park range.
2. Loosen locknuts, Fig. 3.
3. Tighten turnbuckle until it aligns with inner cable, pulling selector lever toward reverse range side without pushing button.
4. Back off turnbuckle one turn and torque locknuts to 3-4 ft. lbs.
5. Move selector lever from Park range to 1 range, ensuring lever moves smoothly.
