Water Pump: Service and Repair

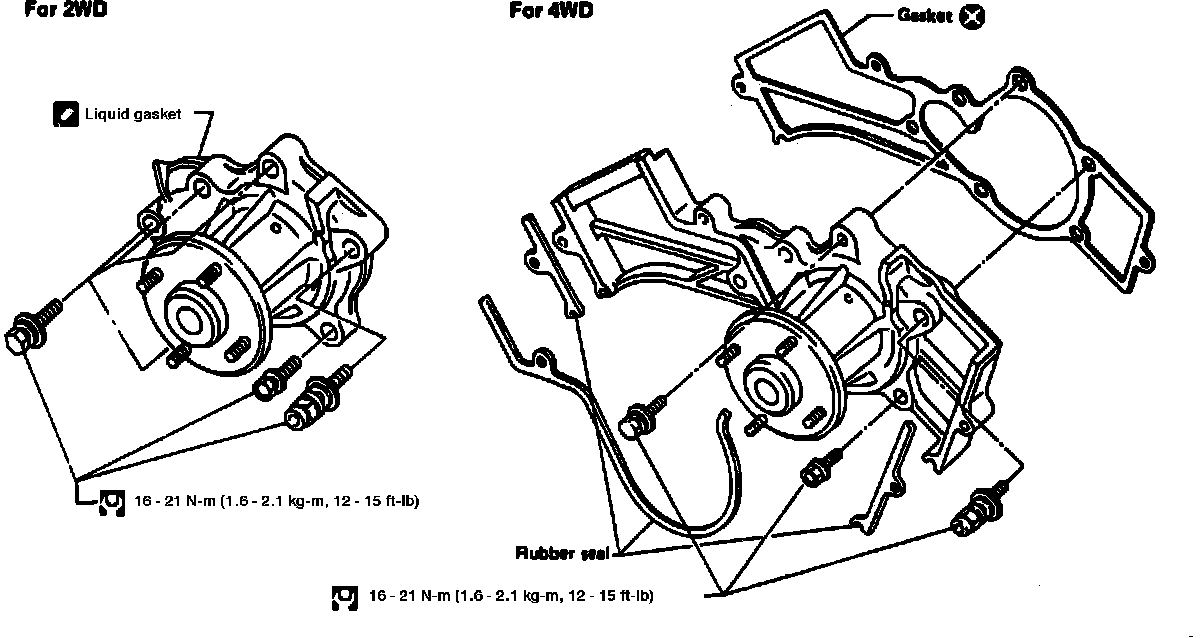

Fig. 92 Replacing Water Pump. Pathfinder & Pickup:

1. Disconnect battery ground cable and drain coolant from right side drain cocks on cylinder block and radiator.
2. Remove all drive belts and timing belt covers. If necessary, refer to ''Timing Belt''.
2. Refer to Fig. 92 to complete water pump replacement procedure.

CAUTION: Be sure not to spill any coolant on the timing belt. If you do, wash off with clean water immediately!
