A/T Fluid Temp Sensor /A/T Control Unit Power Source

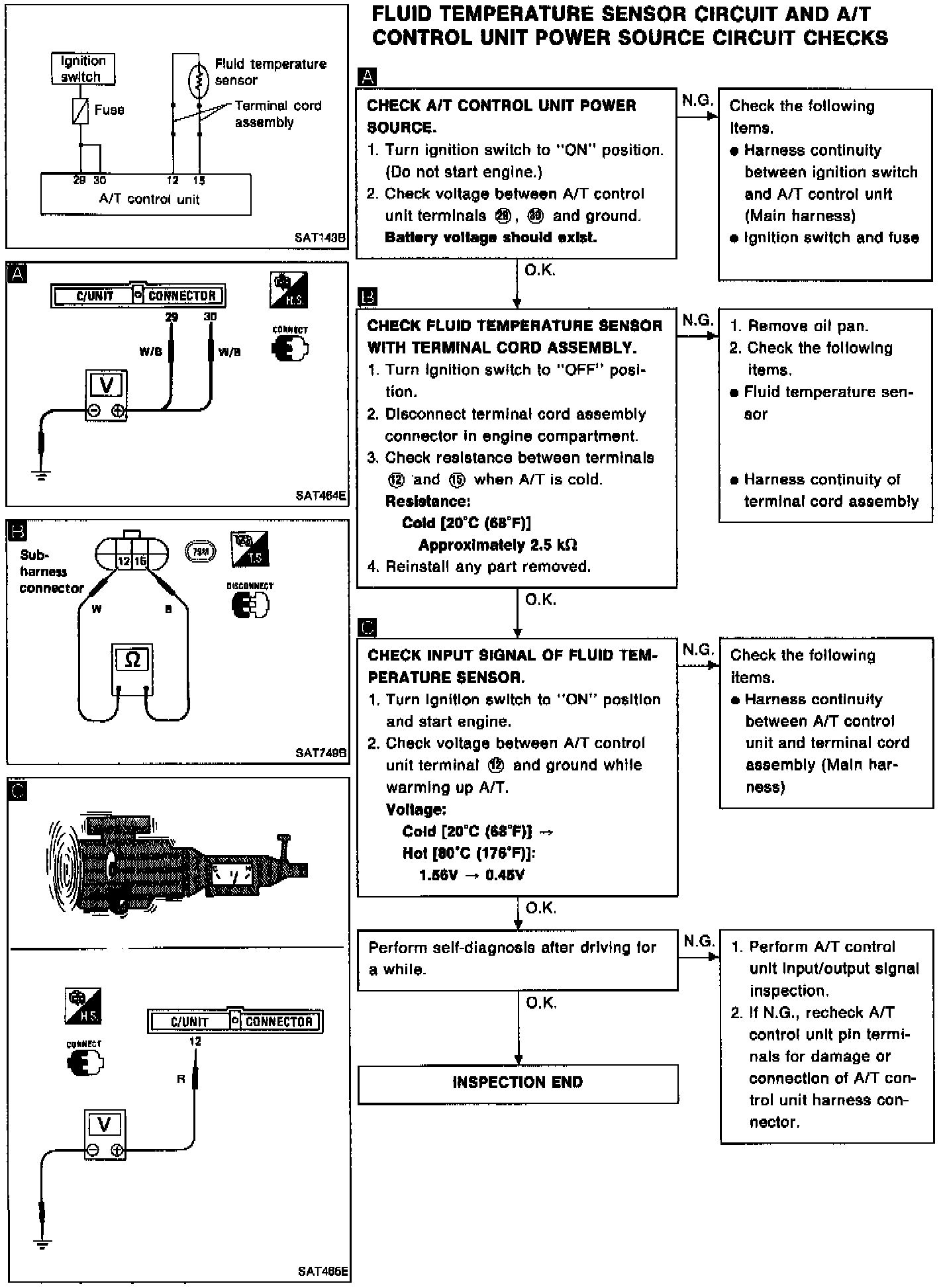

Fluid Temp Sensor Circuit and Control Unit Power Circuit Check:
