Rear Differential

Front Oil Seal Replacement

CAUTION: For final drive models using collapsible spacer (H190A, C2OO) bearing preload must be adjusted whenever companion flange is removed. Therefore, final drive overhaul is required.

1. Remove propeller shaft.

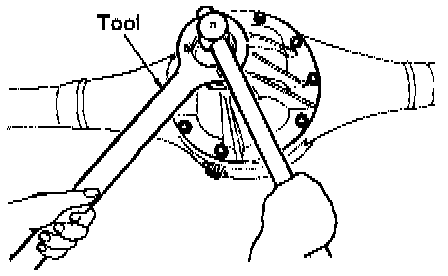

2. Loosen drive pinion nut.
Tool number: KV381O47OO (J34311)

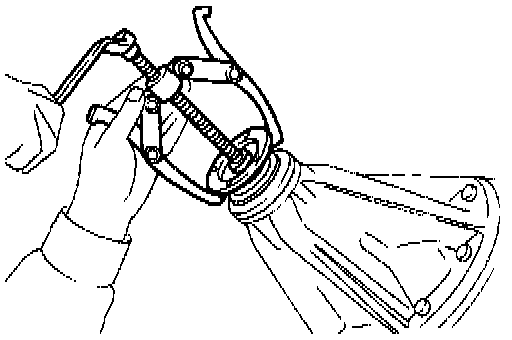

3. Remove companion flange.

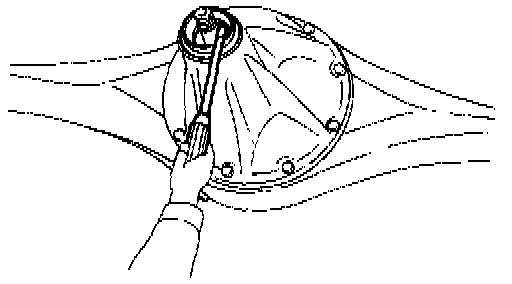

4. Remove front oil seal.





5. Apply multi-purpose grease to cavity at sealing lips of oil seal.

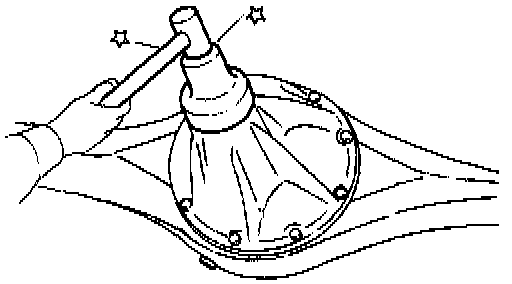

Press front oil seal into carrier.
Tool number: (J25273)
6. Install companion flange and drive pinion nut.
7. Install rear propeller shaft.
