Torque Converter Clutch Solenoid: Testing and Inspection

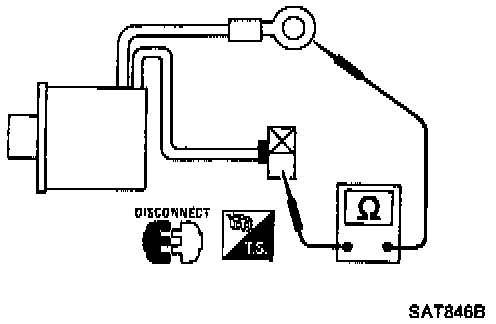

Clutch Solenoid Valve Test:





TORQUE CONVERTER CLUTCH SOLENOID VALVE

^ Check resistance between two terminals.

Resistance:
Torque converter clutch solenoid valve 10 - 16 Ohms
