Throttle Valve Cable/Linkage: Adjustments

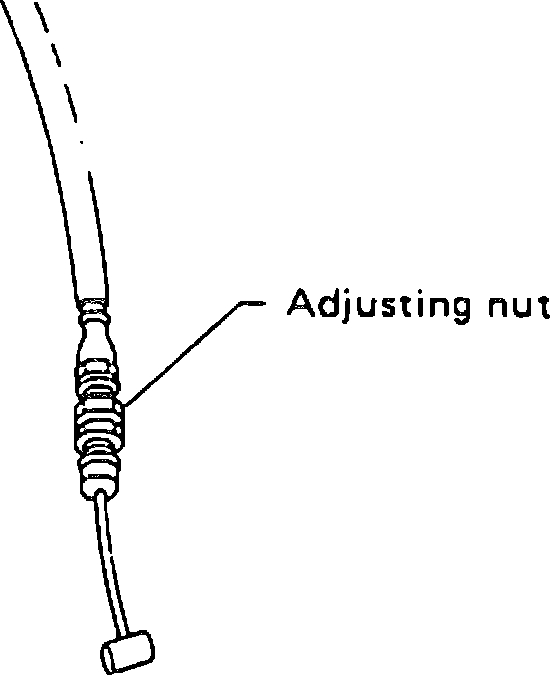

Fig. 7 Accelerator Cable Adjusting Nut:

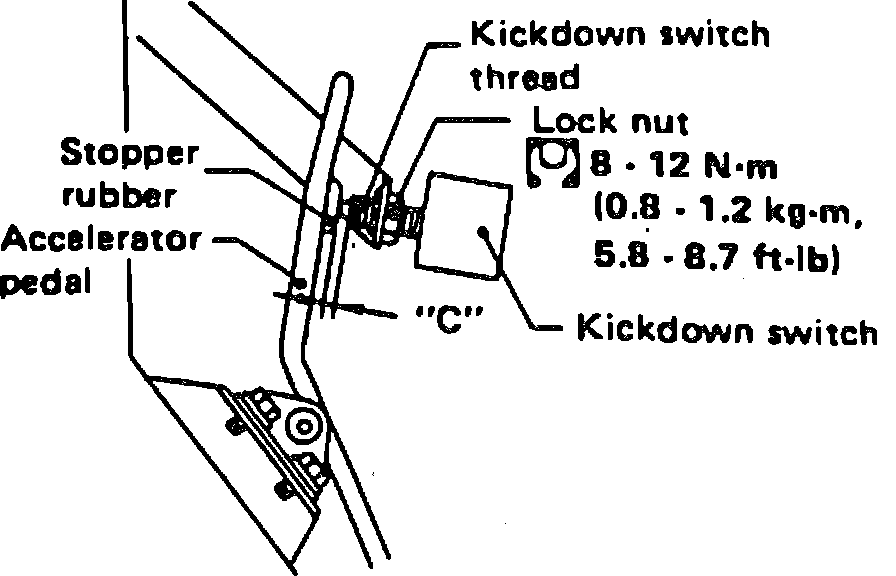

Fig. 8 Kickdown Switch Adjustment:

1. Adjust accelerator cable as follows:
a. Tighten adjusting nut, Fig. 7, until throttle drum starts to move, then back off 1 1/2-2 turns and secure with locknut.
2. Adjust kickdown switch as follows:
a. Adjust clearance ``C'', Fig. 8, between stopper rubber and end of kickdown switch thread while depressing accelerator pedal fully.
b. Clearance ``C'', should be .012-.039 inch.
