Seals and Gaskets: Service and Repair

Rear Oil Seal Replacement:

2WD model
1. Remove propeller shaft from vehicle.

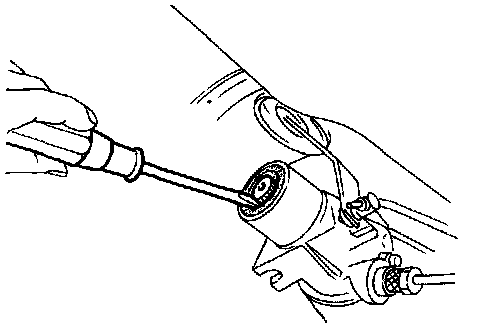

2. Remove rear oil seal.

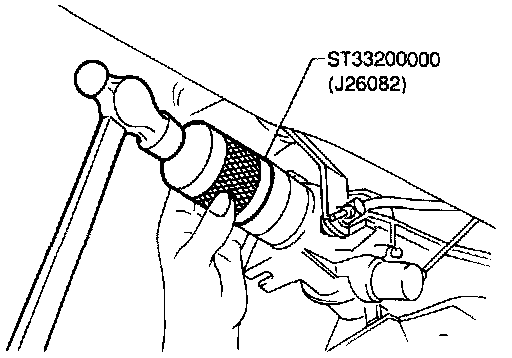

3. Install rear oil seal.
Apply A.T.F. before installing.
4. Reinstall any part removed.
