Parking Pawl: Service and Repair

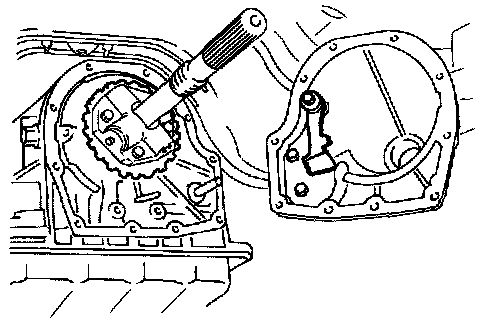

Parking Components - 2WD model
1. Remove propeller shaft from vehicle.
2. Support A/T assembly with a jack.
3. Remove rear engine mounting member.
4. Remove rear extension from transmission case.





5. Replace parking components if necessary.
6. Reinstall any part removed.
- Always use new sealing parts.
