Front

REMOVAL AND INSTALLATION:
When removing and installing shock absorber, do not allow oil or grease to come into contact with rubber parts.

1. Raise and support vehicle.
2. Remove wheel.

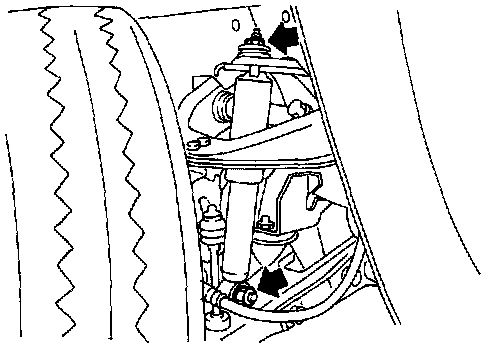

3. Disconnect shock absorber from upper mounting.
4. Disconnect shock absorber from lower mounting.
5. Remove shock absorber from vehicle.
6. Reverse procedure to install.
