Home >> Nissan-Datsun >> 1992 >> D21 Hardbody 2WD V6-2960cc 3.0L SOHC MFI (VG30E) >> Repair and Diagnosis >> Starting and Charging >> Relays and Modules - Starting and Charging >> Neutral Start Relay (Inhibitor Relay) >> Locations >> Interlock Relay

Interlock Relay

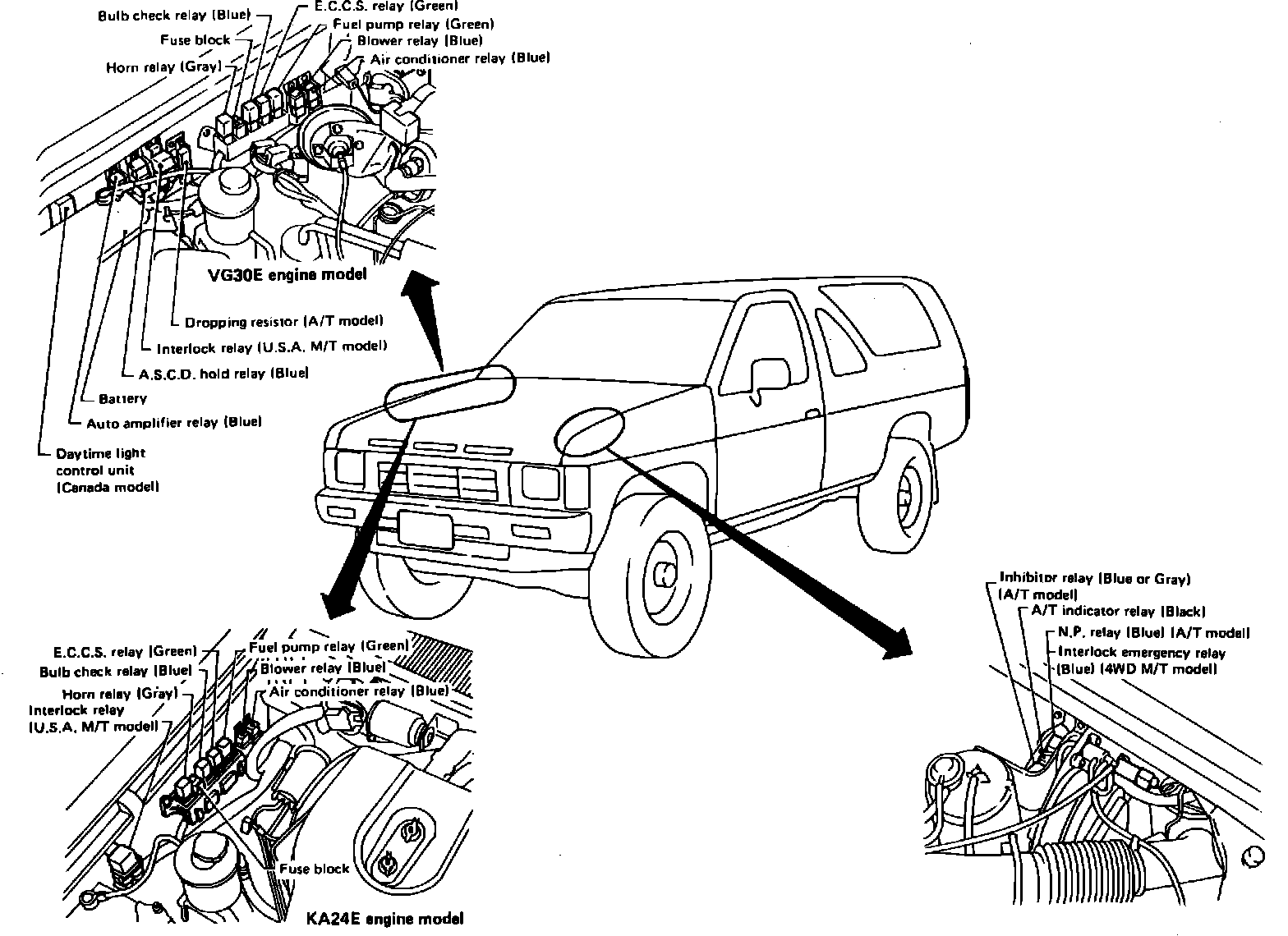

Engine Compartment Components:






RH Side Of Engine Compartment
