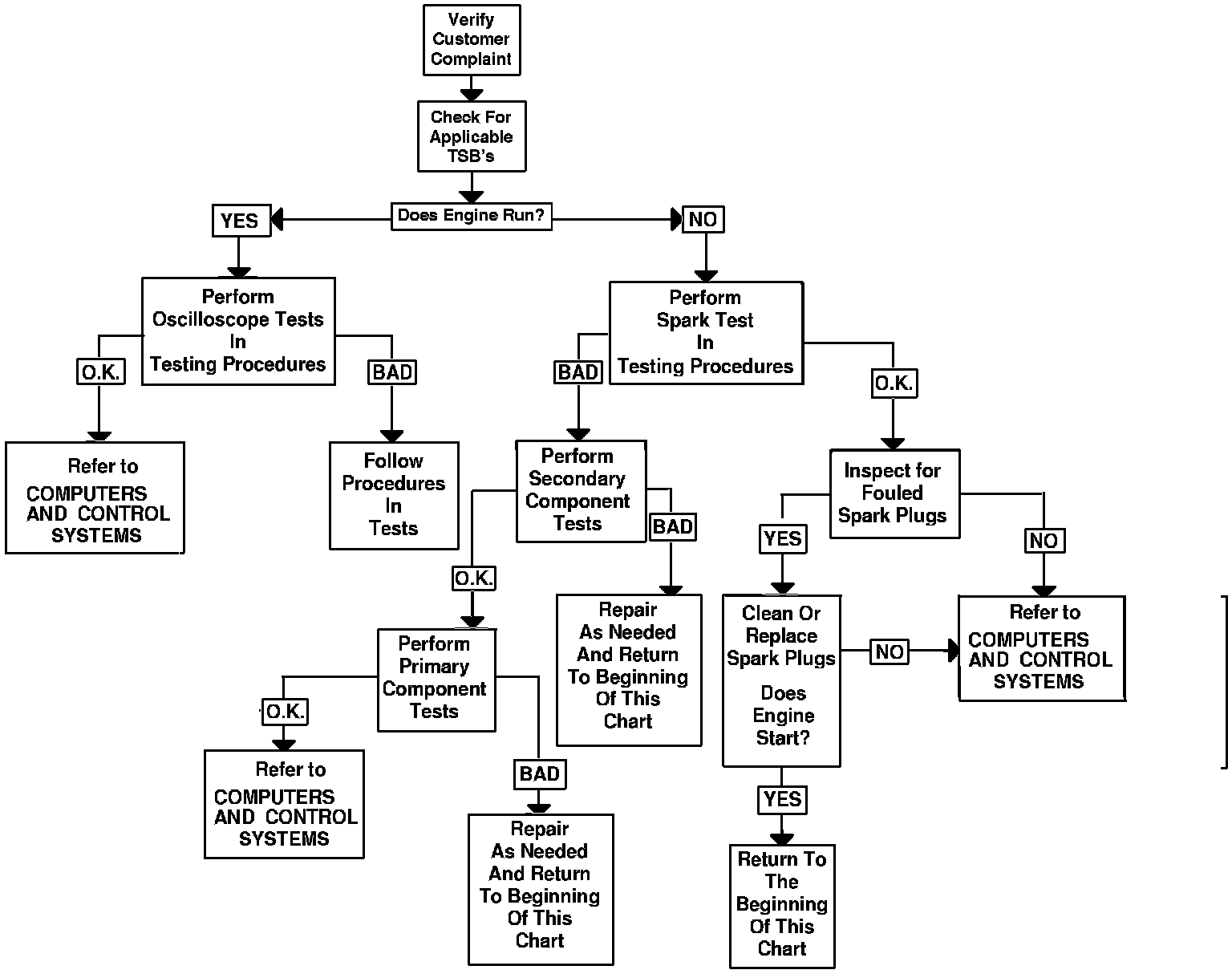

Flow of Diagnosis
Flow Of Diagnosis:
1. Verify customer complaint.
2. Check for applicable TSB's.
3. Follow the Flow Of Diagnosis from top to bottom.
4. If no faults are found in the ignition system, see Computers and Control Systems.
1. Verify customer complaint.
2. Check for applicable TSB's.
3. Follow the Flow Of Diagnosis from top to bottom.
4. If no faults are found in the ignition system, see Computers and Control Systems.
