Auxiliary Air Control (AAC) Valve Circuit
Auxiliary Air Control (AAC) Valve Circuit

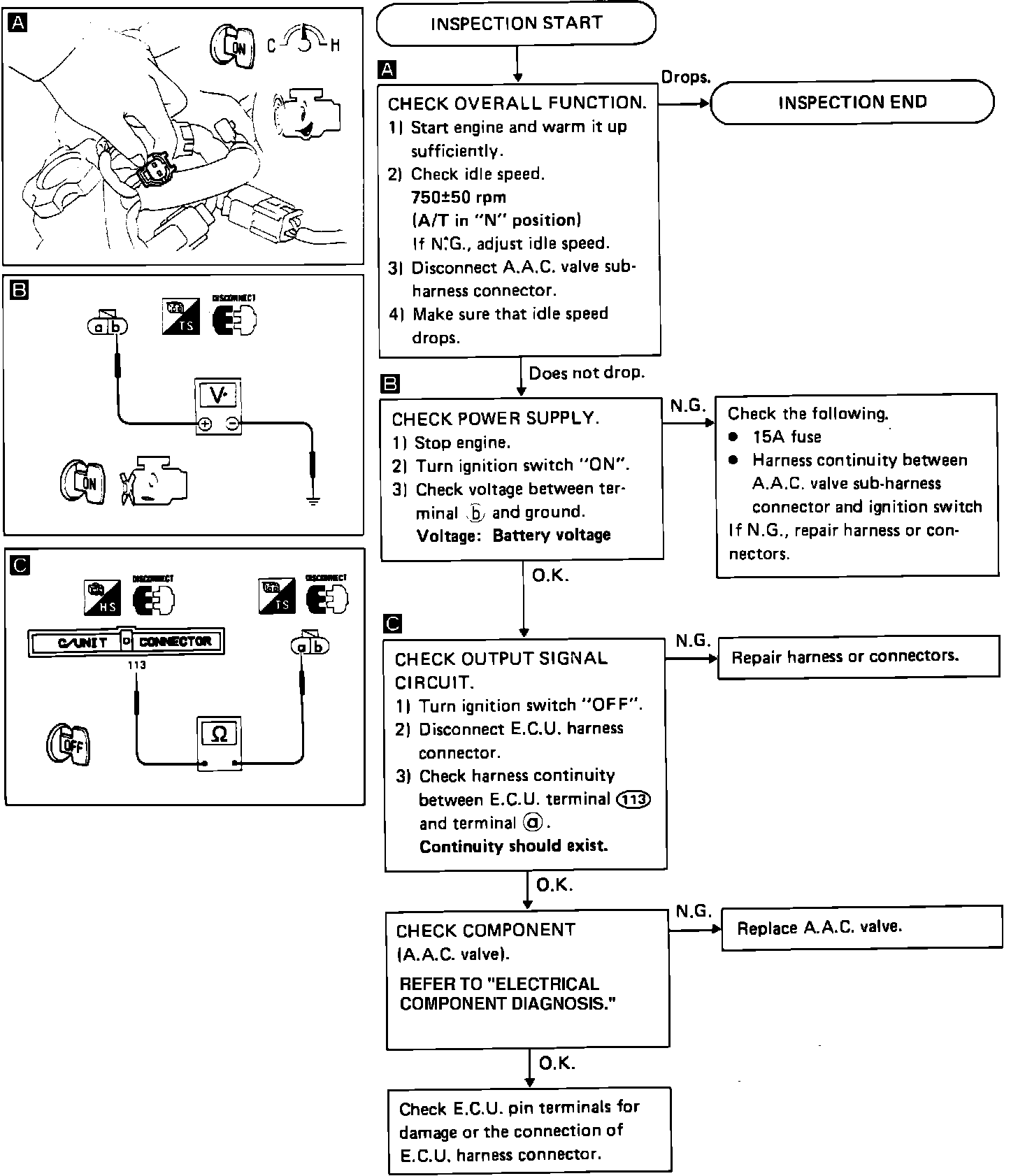

AAC Valve Circuit Diagnostic Chart:
CIRCUIT TEST IMAGE
Circuit Diagram:
CIRCUIT DIAGRAM IMAGE

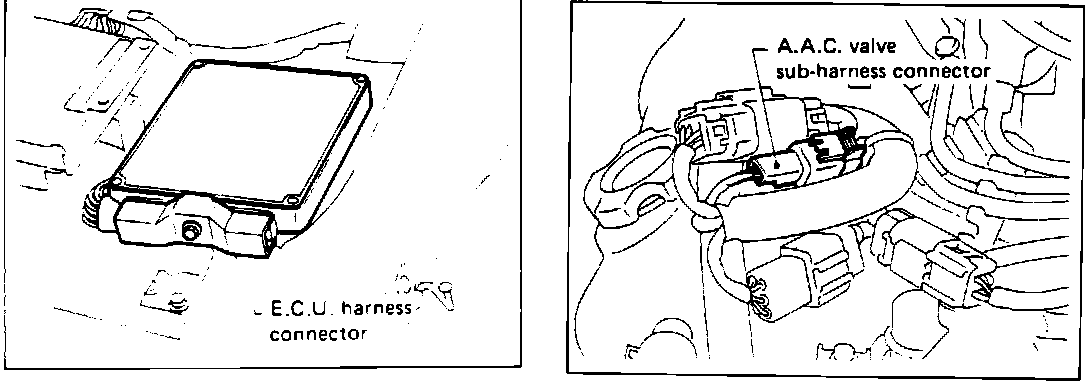

Connector Location:
CONNECTOR LOCATION IMAGE
