Combination Switch

It is not necessary to remove combination switch base to replace light switch.

1. Disconnect battery ground cable.
2. Remove horn cover.
3. Remove steering column shell covers.
4. Disconnect switch electrical connections.

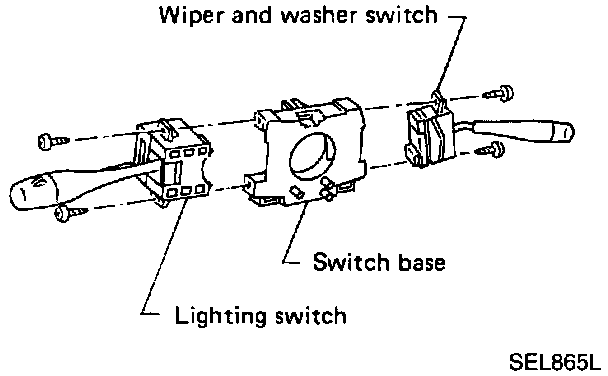

Combination Switch/Replacement:






5. Remove retaining screws and switch.
6. Reverse procedure to install.
