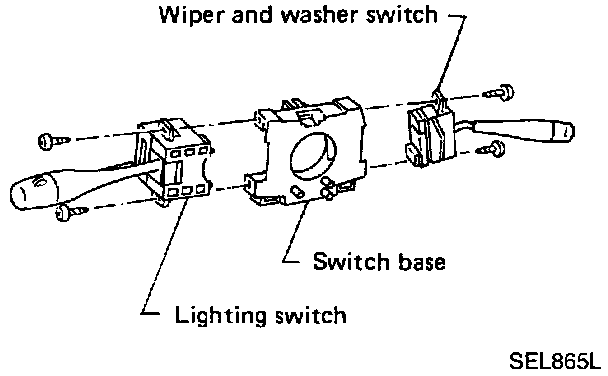

Combination Switch Base


1. Disconnect battery ground cable.
2. Remove steering wheel as described under ``Steering Wheel, Replace.''
3. Remove steering column shell covers.
4. Disconnect switch electrical connections.
5. Remove retaining screws and switch base.

Combination Switch/Replacement:






6. Reverse procedure to install.
