Home >> Nissan-Datsun >> 1992 >> D21 Hardbody 2WD V6-2960cc 3.0L SOHC MFI (VG30E) >> Repair and Diagnosis >> Heating and Air Conditioning >> Specifications >> Mechanical Specifications >> System Specifications

System Specifications

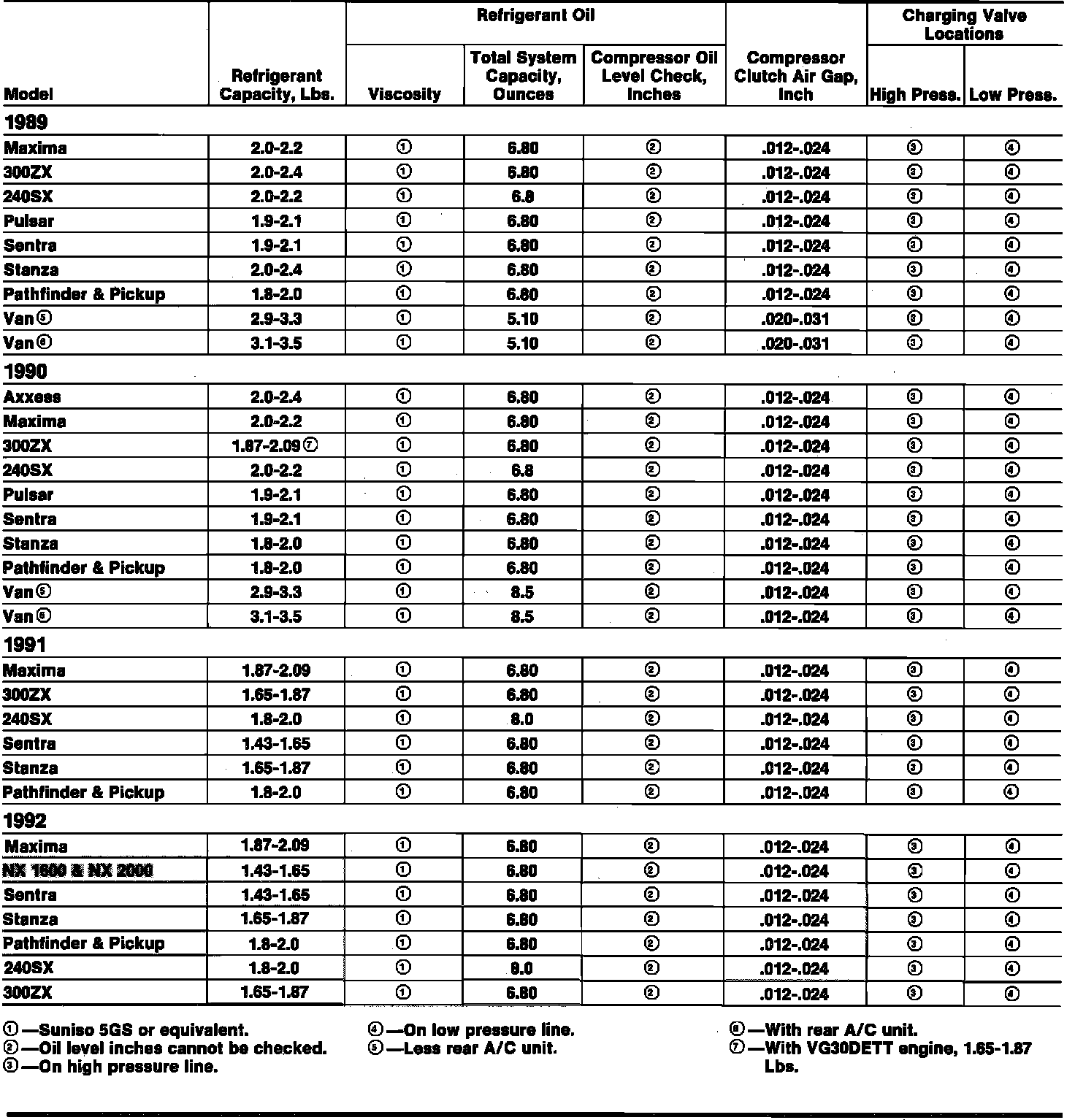

Fig. 27 Air Conditioning Specifications:
