Oil Level Check

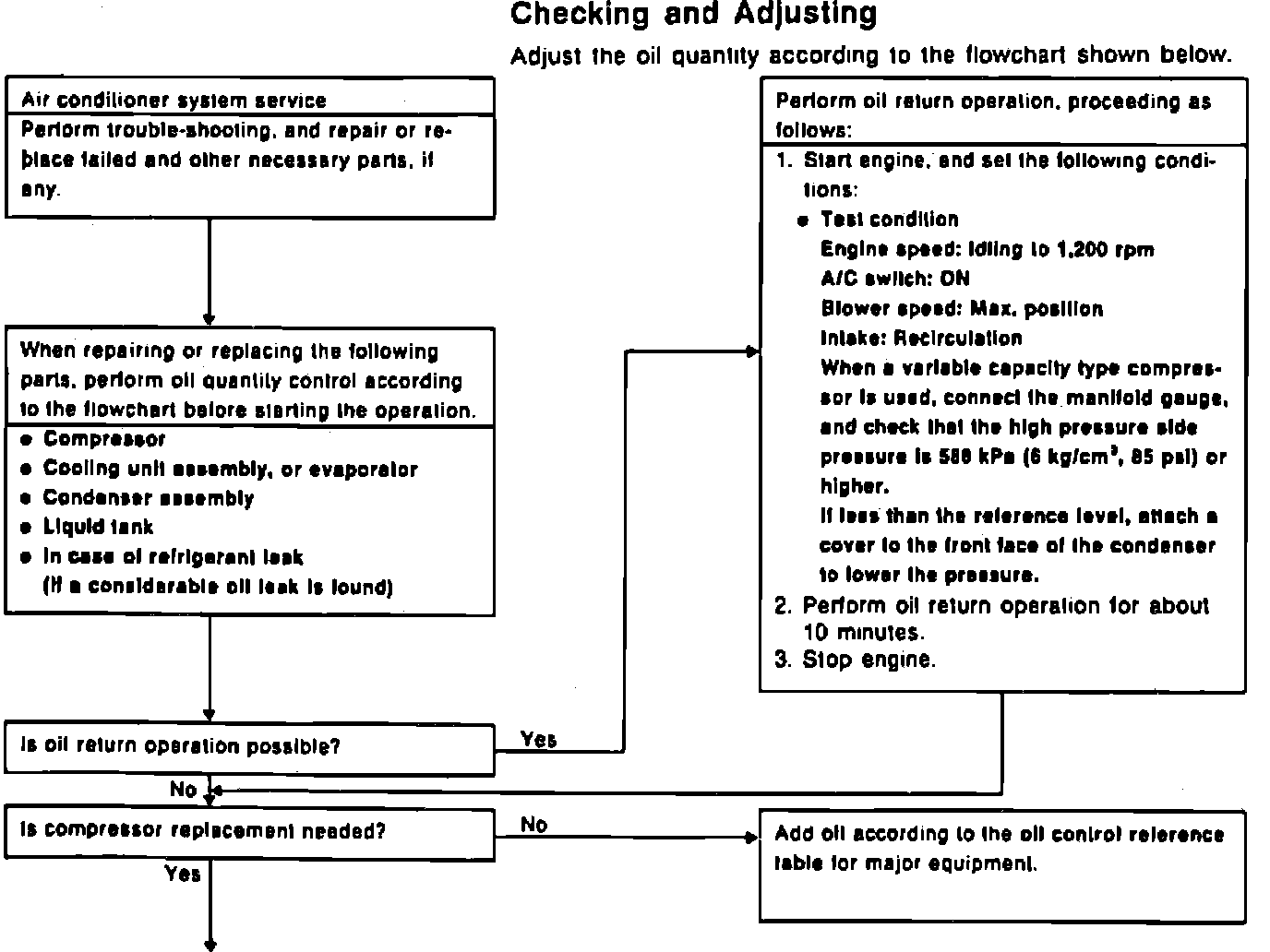

Fig. 24 Refrigerant Oil Replacement Flow Chart (Part 1 Of 2).:

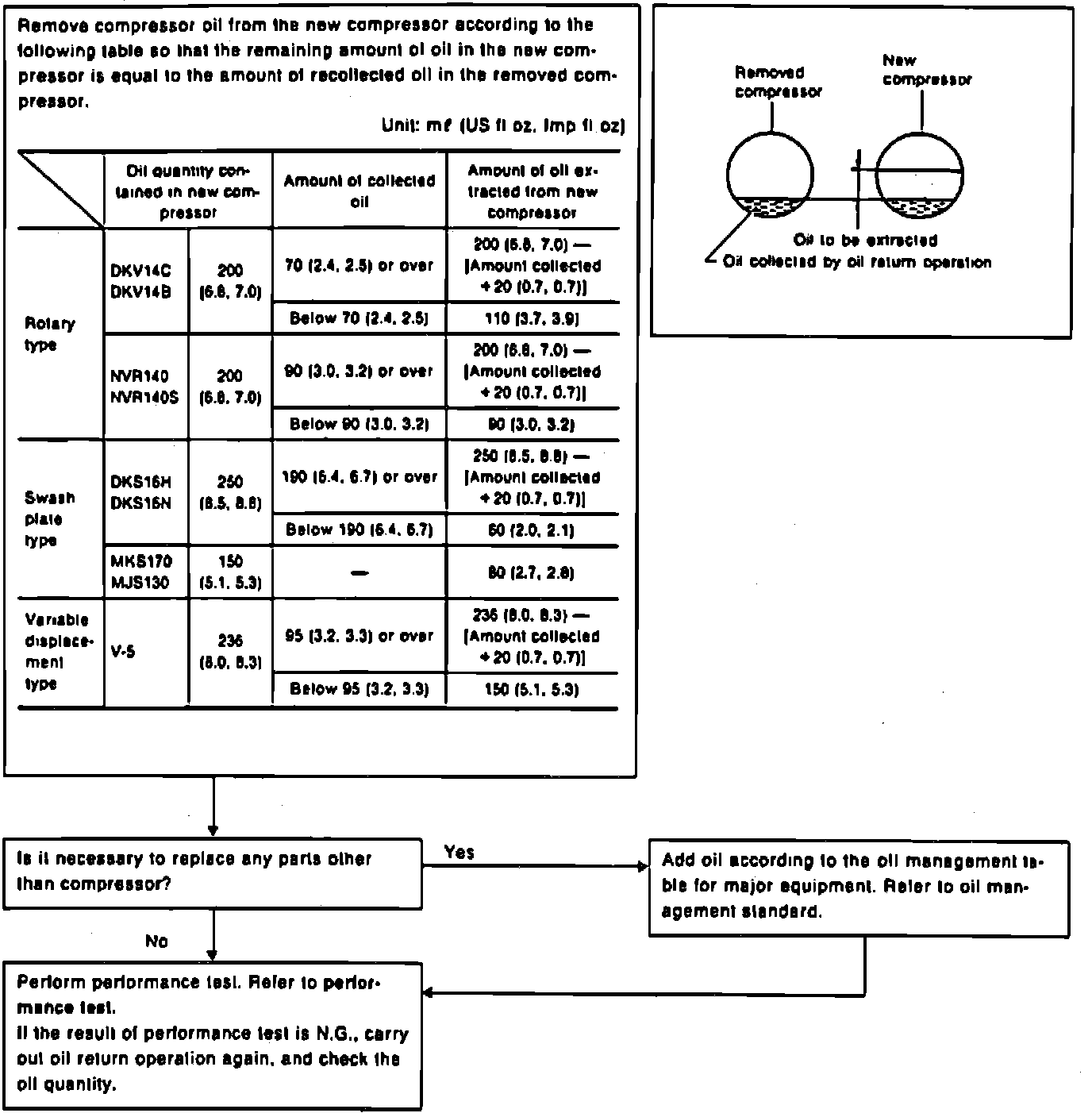

Fig. 24 Refrigerant Oil Replacement Flow Chart (Part 2 Of 2).:

Adjust oil quantity according to the charts in Fig. 24.
