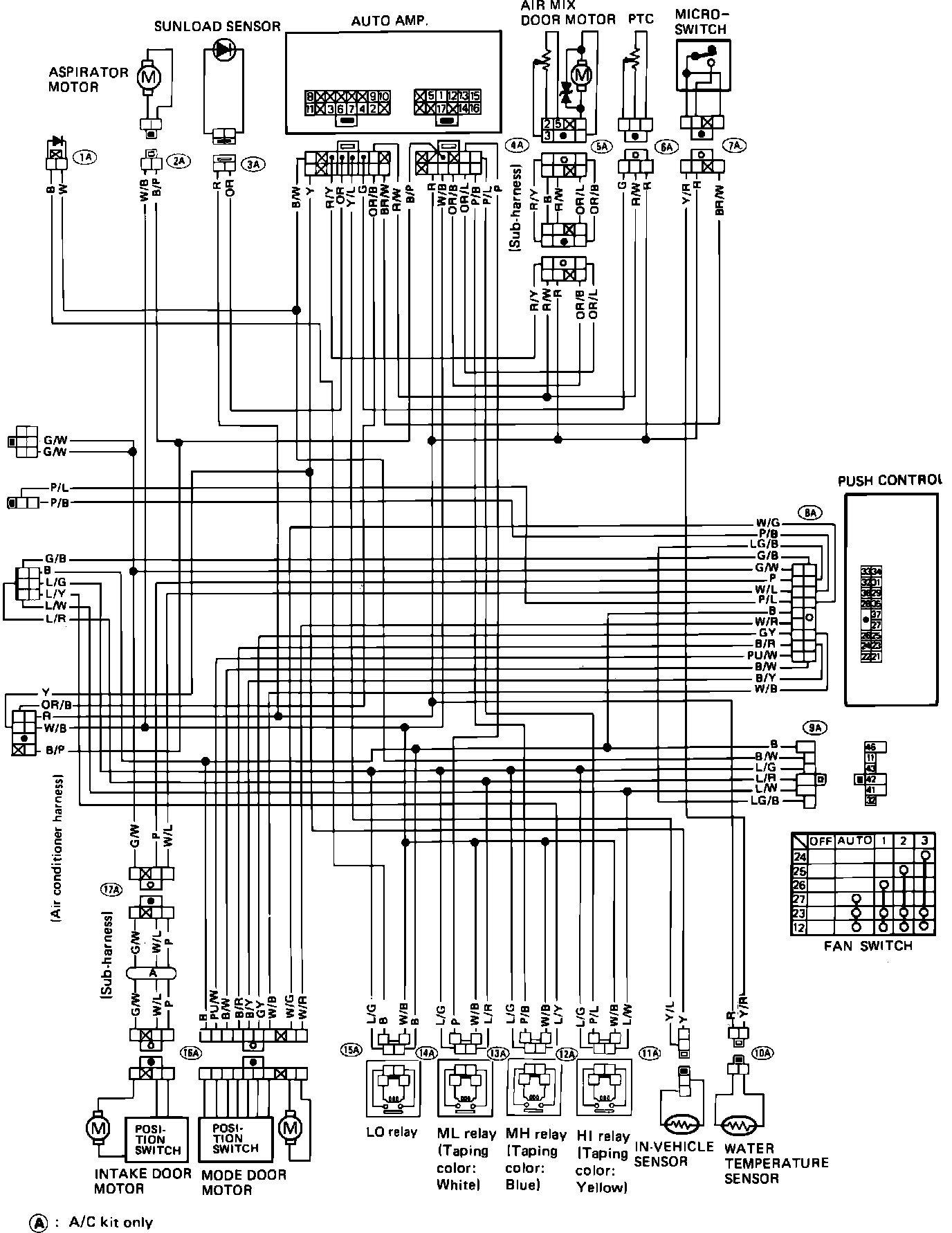

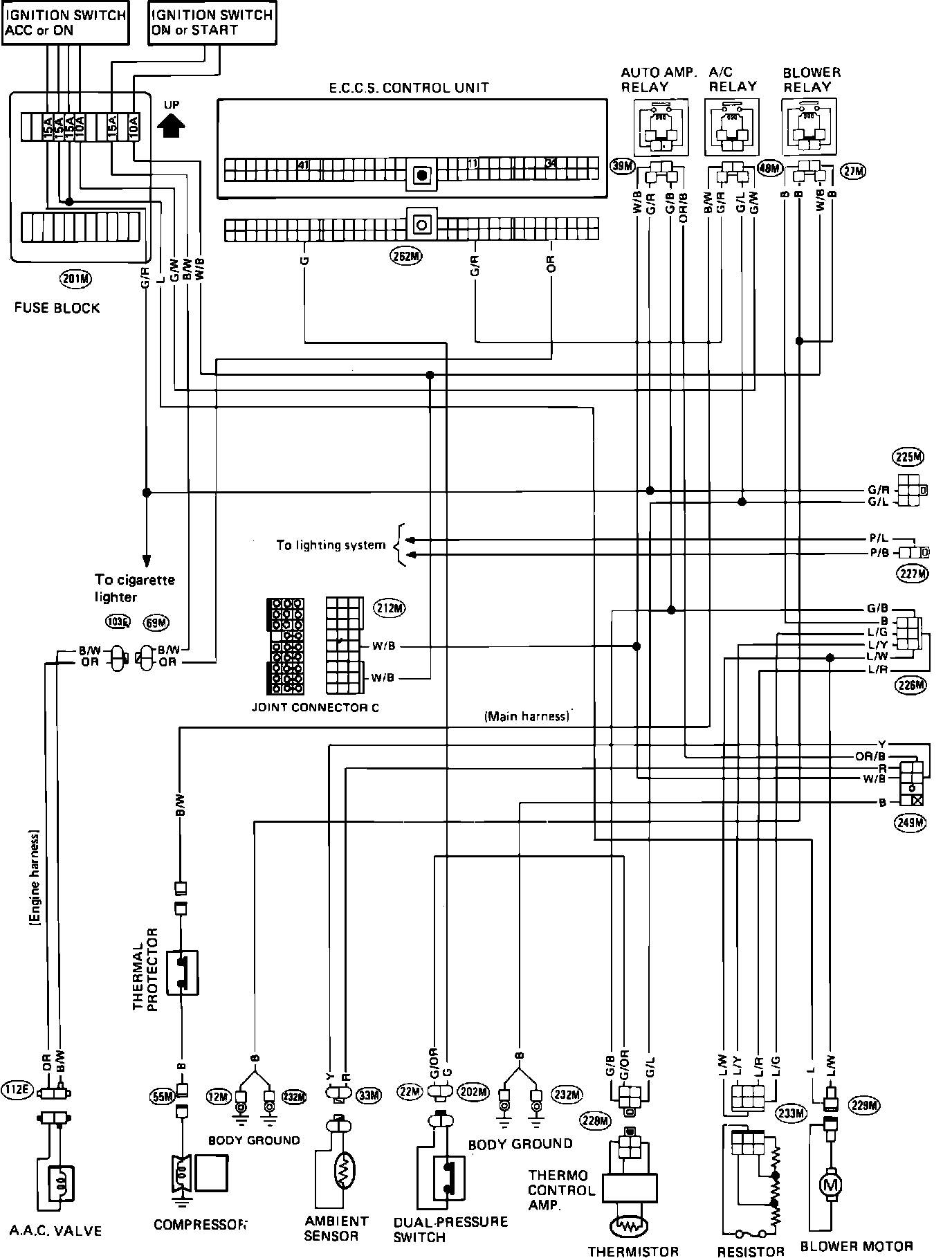

Automatic Air Conditioning

Air Conditioning & Heater. Automatic Controls:

Air Conditioning & Heater. Automatic Controls:
