With Warning Light

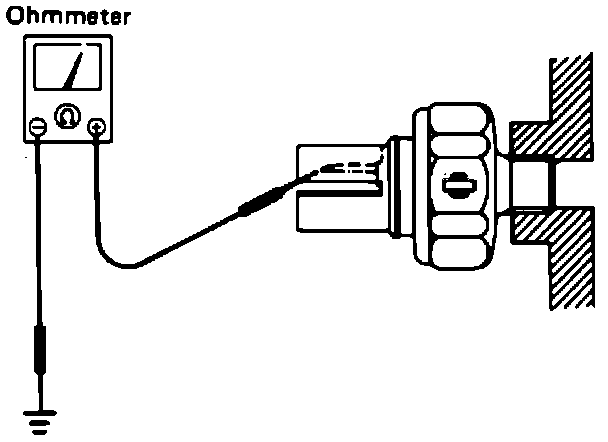

Fig. 44 Checking Oil Pressure Switch:





Oil Pressure Warning Light Switch Testing

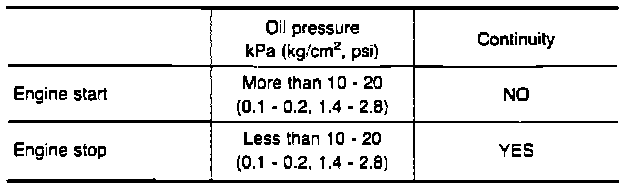

Fig. 46 Oil Pressure Switch Specifications:





Oil Pressure Switch Specs
