Home >> Nissan-Datsun >> 1992 >> D21 Hardbody 2WD V6-2960cc 3.0L SOHC MFI (VG30E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Panel Circuit Board Wiring >> SE Models

SE Models

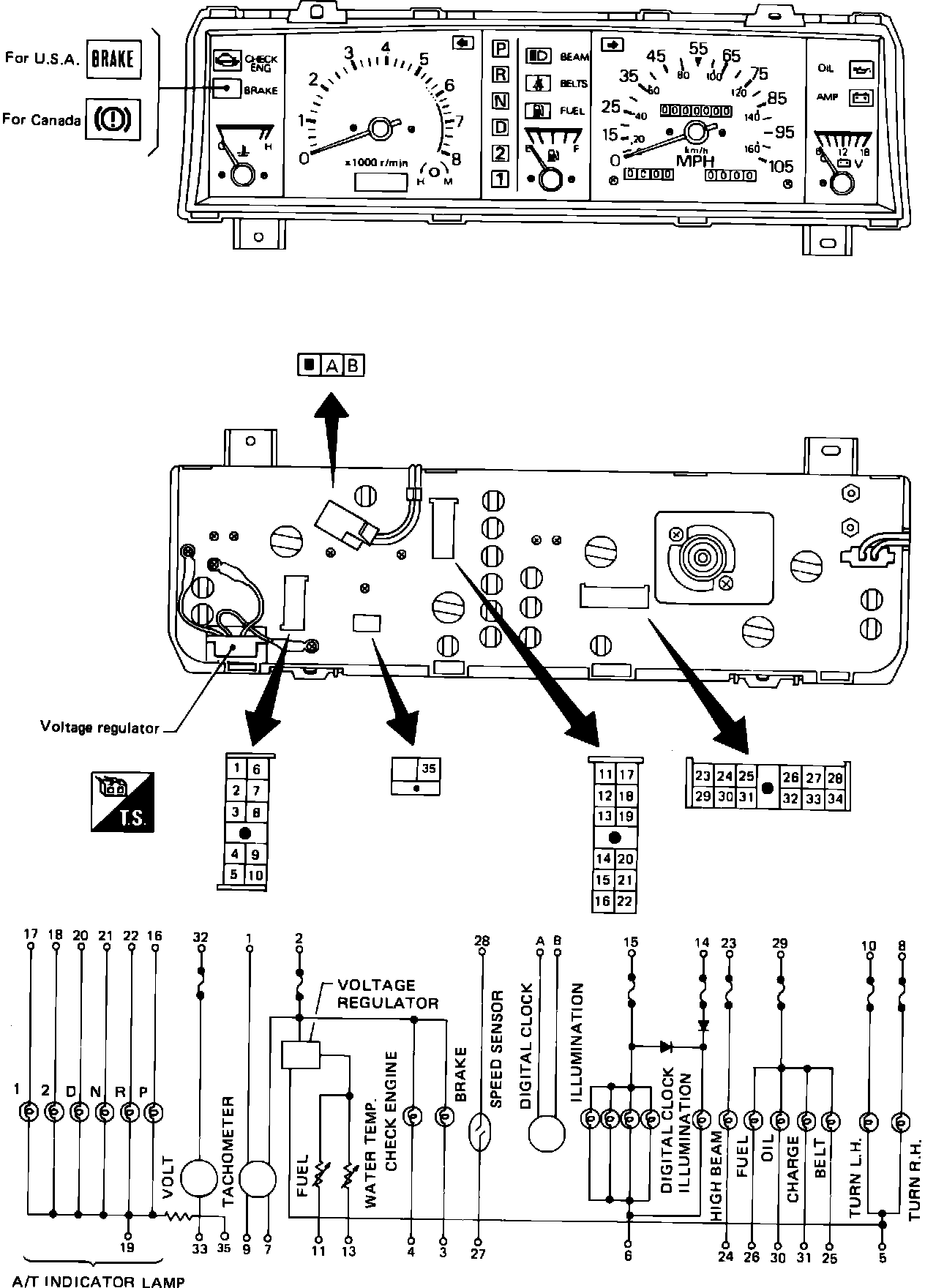

Instrument Panel Circuit Board Wiring. SE Models:
