LT30 Brake System

For additional information see Brake Spring Removal and Installation Notes, and Notes, Warnings, and Hints. Fundamentals and Basics

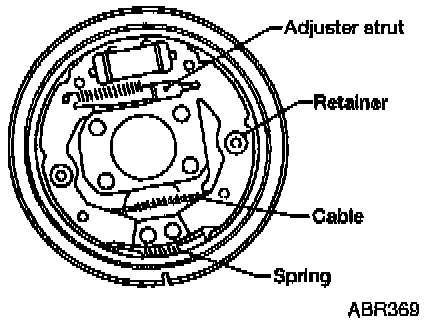

Exploded View:

Brake Shoe Removal:

1. After removing retainer, remove spring by rotating shoes.
- Be careful not to damage wheel cylinder piston boots.
- Be careful not to damage parking brake cable when separating it.

NOTE: For additional information see Brake Spring Removal and Installation Notes.

2. Remove adjuster.
3. Disconnect parking brake cable from toggle lever.

Toggle Lever Pin Removal:

4. Remove retainer clip with a suitable tool. Then separate toggle lever and brake shoe.

Warning: Clean brake lining, backing plate and drum with a vacuum dust collector to minimize the hazard of airborne materials.
