Home >> Nissan-Datsun >> 1992 >> D21 Hardbody 2WD V6-2960cc 3.0L SOHC MFI (VG30E) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Preliminary Check 2

Preliminary Check 2

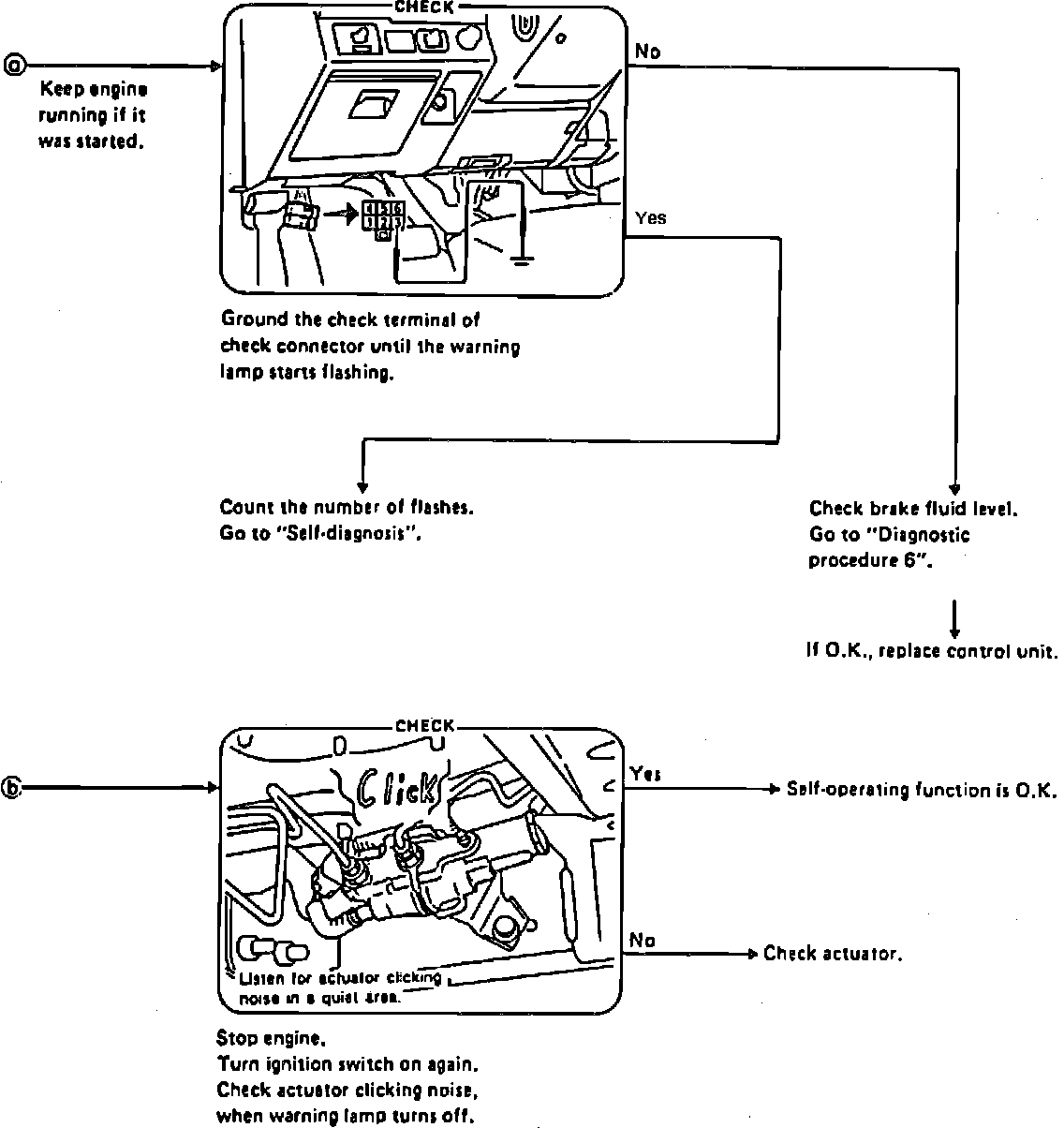

Fig. 14 Preliminary Check 2.:
