Diagnostic Test Procedure 9
Diagnostic Test Procedure 9

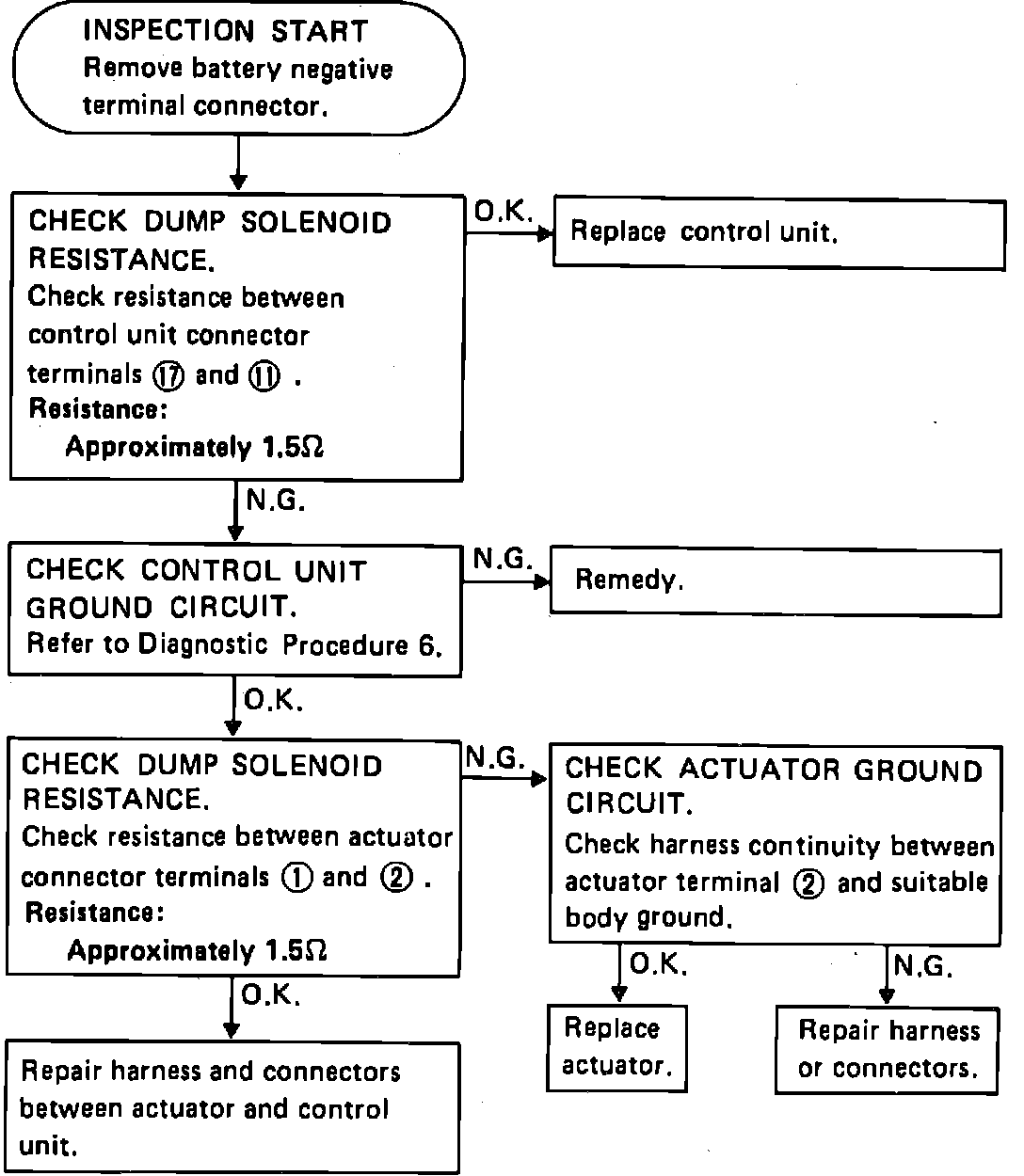

Fig. 66 Diagnostic Procedure 9 (Actuator Dump Solenoid Short Circuit, Warning Lamp Flashes Nos. 3 Or 8).:
