Diagnostic Test Procedure 7
Diagnostic Test Procedure 7

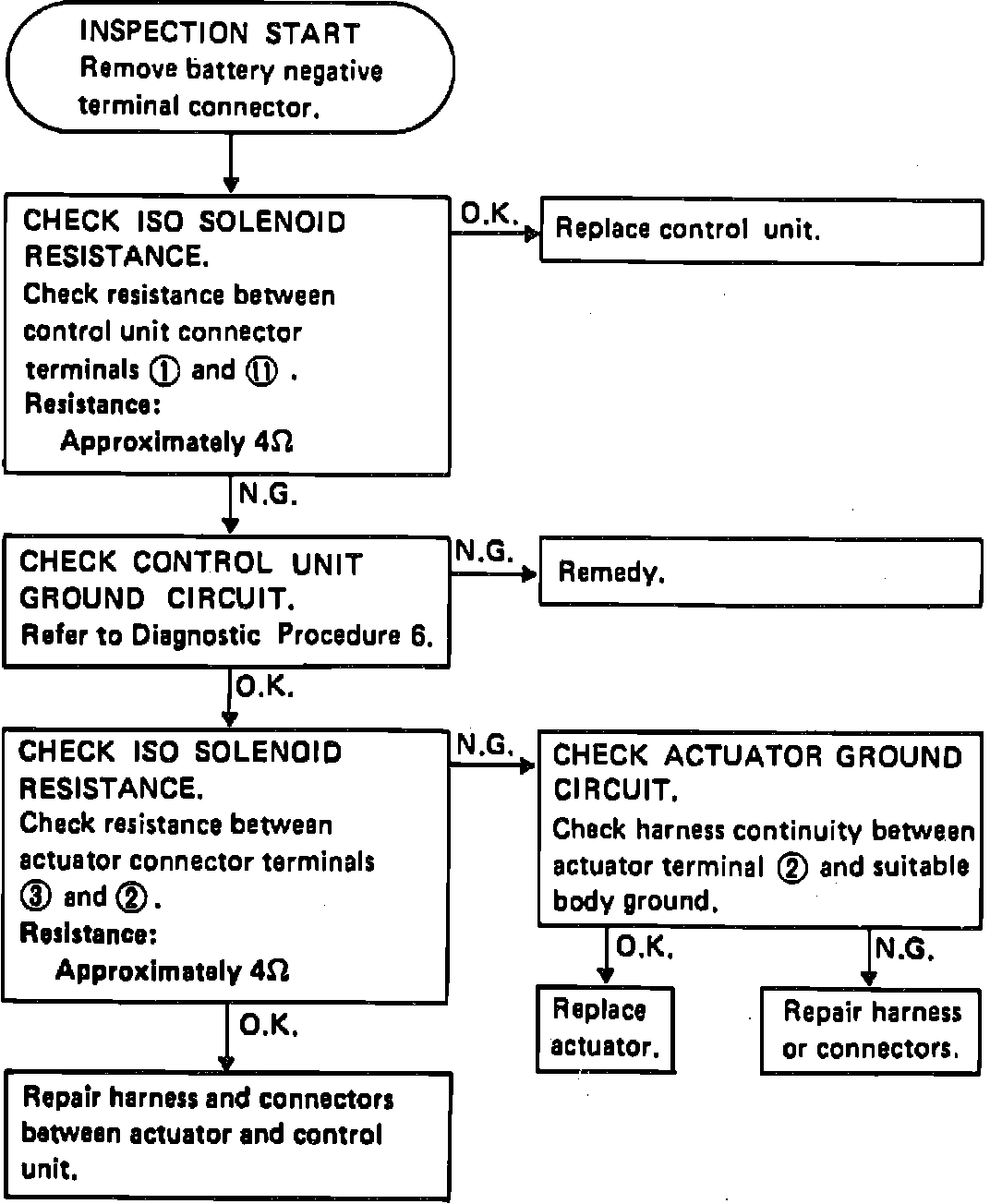

Fig. 64 Diagnostic Procedure 7 (Actuator ISO Solenoid Short Circuit Or Open, Warning Lamp Flashes Nos. 2 Or 7).:
