Diagnostic Test Procedure 6
Diagnostic Test Procedure 6

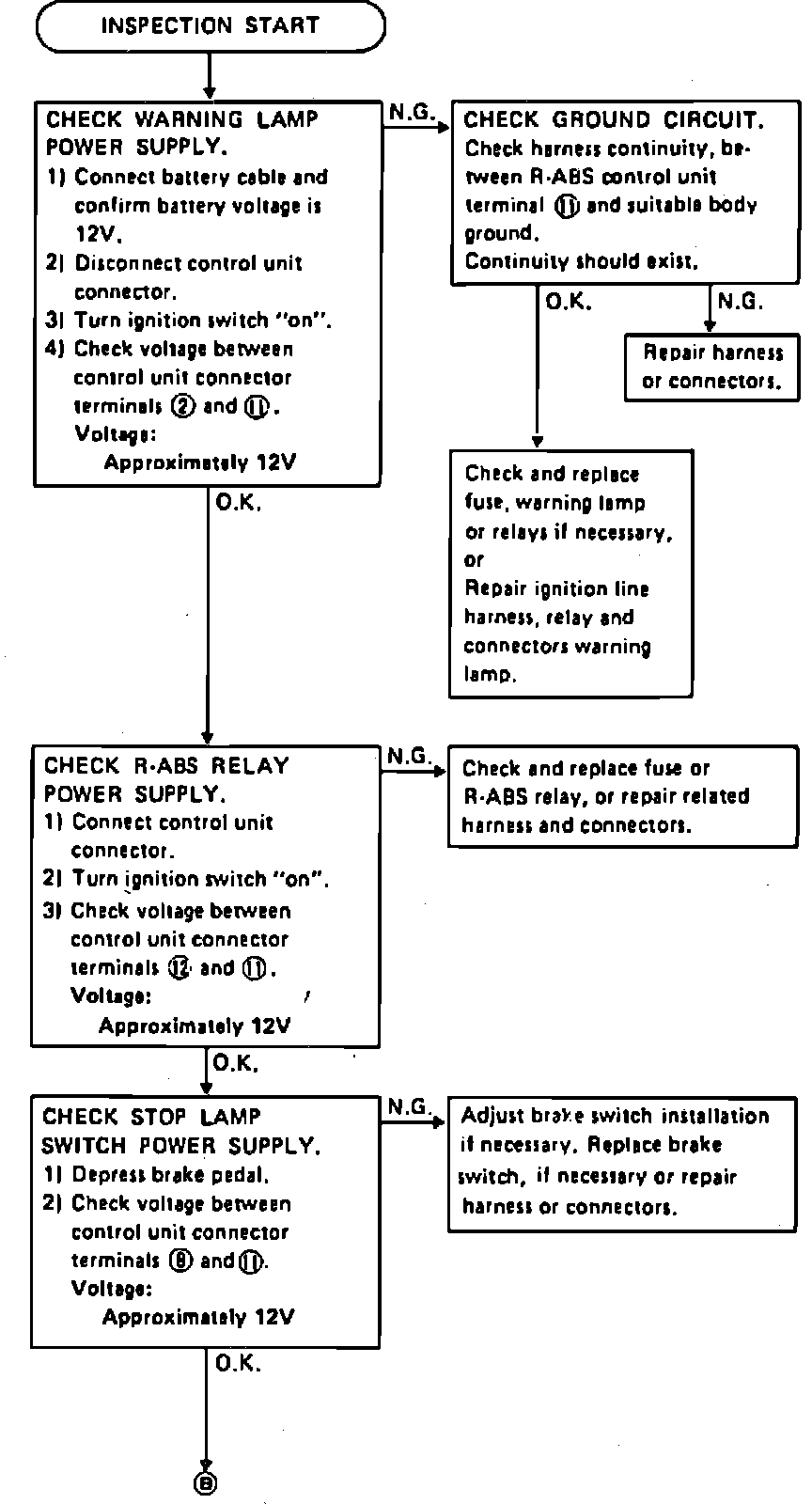

Fig. 63 Diagnostic Procedure 6 (Main Power Supply & Ground Circuit, Part 1 Of 2).:
Fig. 63 Diagnostic Procedure 6 (Main Power Supply & Ground Circuit, Part 2 Of 2).:
