Diagnostic Test Procedure 5
Diagnostic Test Procedure 5

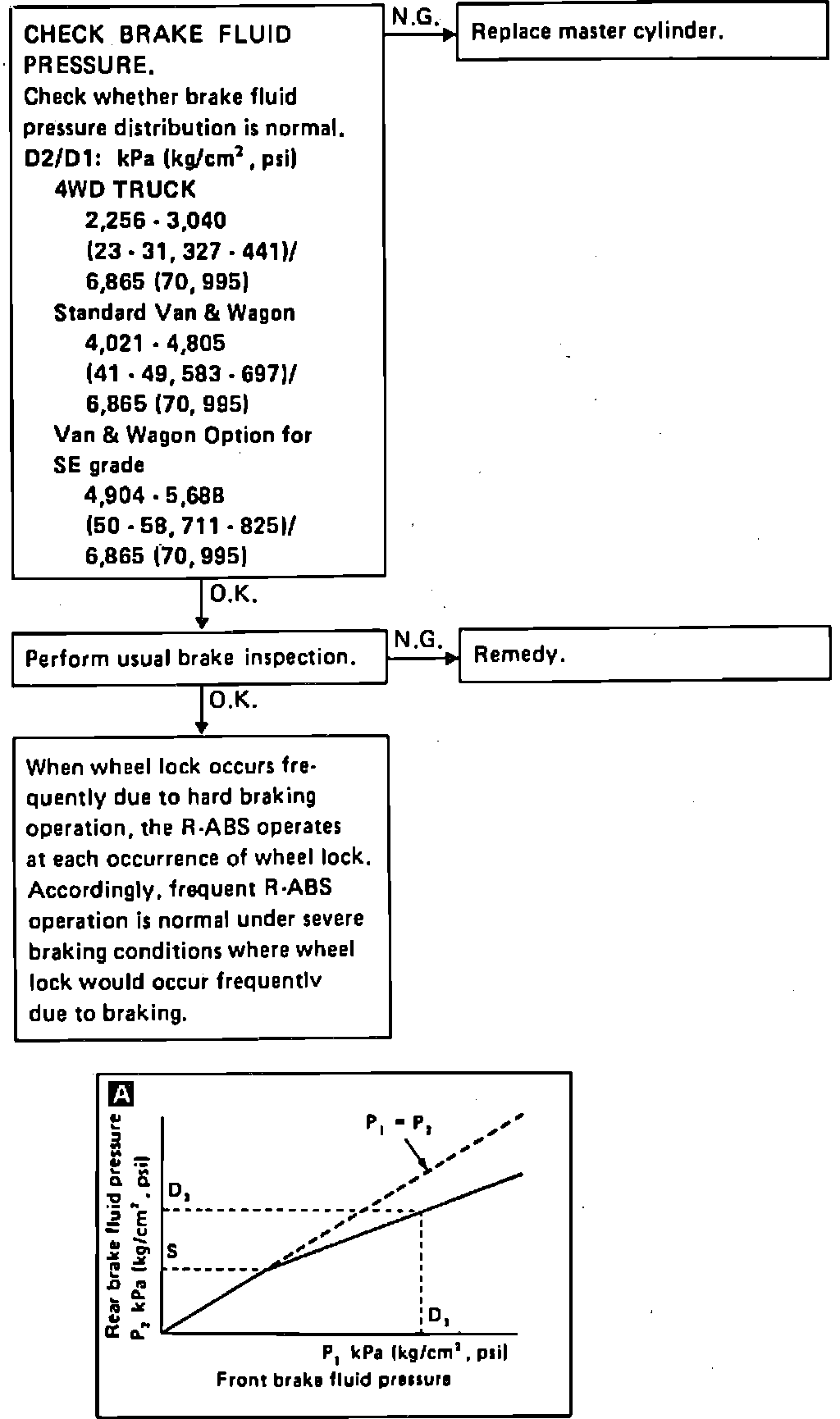

Fig. 62 Diagnostic Procedure 5 (R-ABS Works Frequently).:
