Rattling Noise Under Instrument Panel

No. (4)
MODEL: D21/WD21

PARTS/LOCATIONS AFFECTED: CONNECTORS UNDER LEFT SIDE OF INSTRUMENT PANEL

SYMPTOM:
Rattling noise

REPAIR METHOD
Tools required:
Gum tape, urethane tape

How to repair:

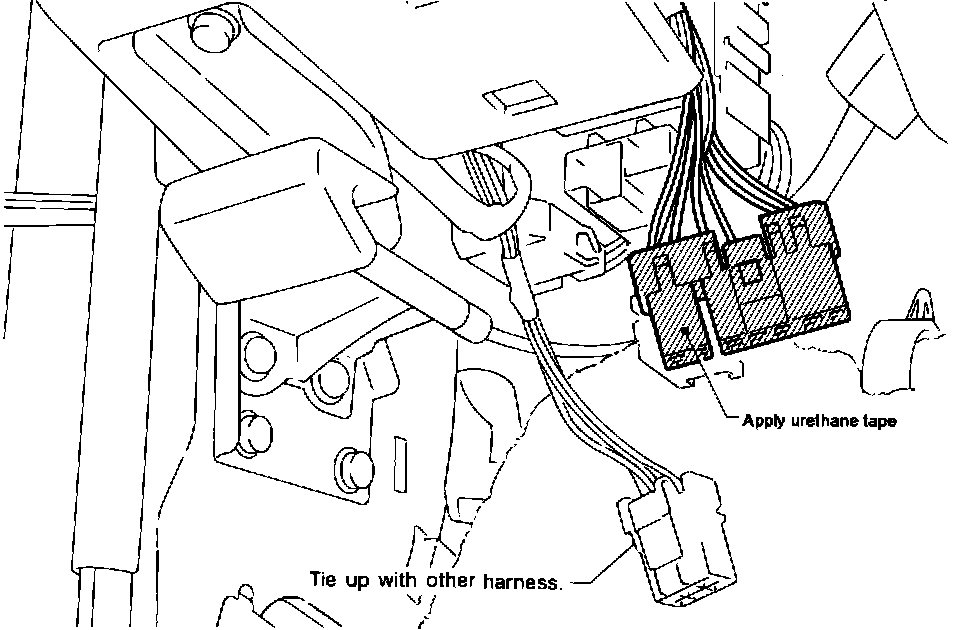

Pull out harness connectors by reaching under the instrument panel. There are two connectors. The small white one should be tied up in a bundle with the other harnesses. The big black one is a connector for diagnosis. Wrap it with urethane tape instead of tieing it up since there is a possibility that it will be used. Then loop it up in the instrument panel.
