DTC 51

The ECU detected an open in the circuit.

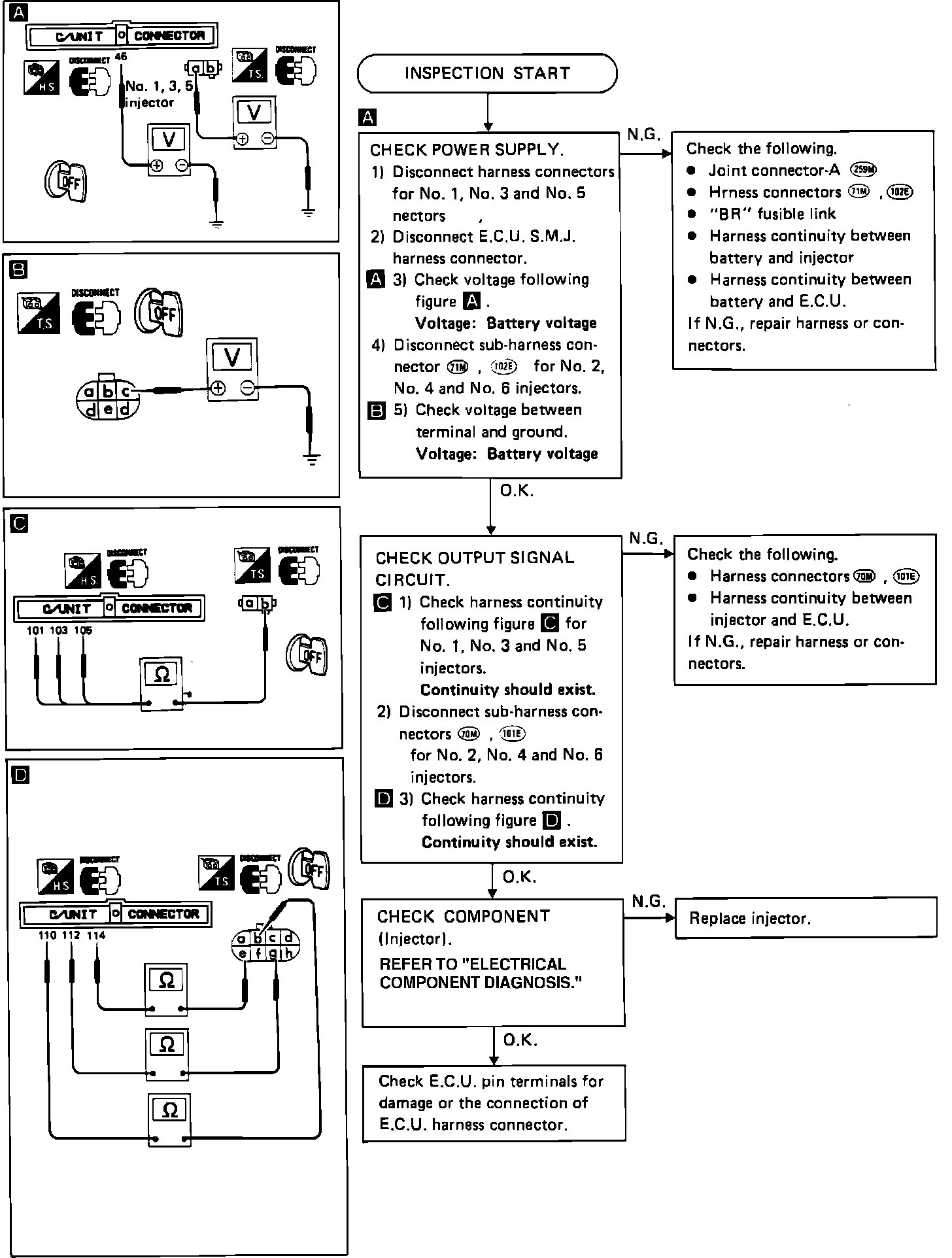

Code 51 Fuel Injector Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

Circuit Diagram:

CIRCUIT DIAGRAM IMAGE

Connector Location:

ELECTRICAL CONNECTORS IMAGE

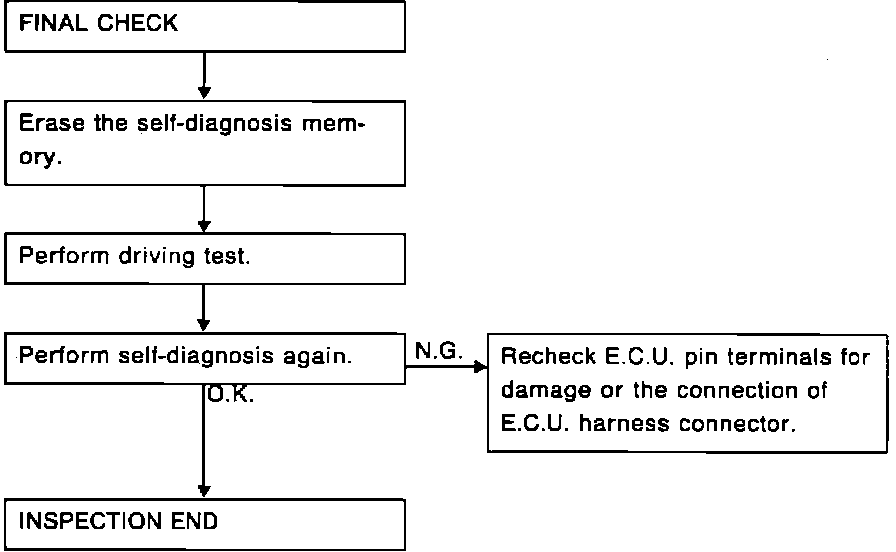

Final Check:

FINAL CHECK IMAGE
