DTC 35

The ECU detected an open in the circuit.

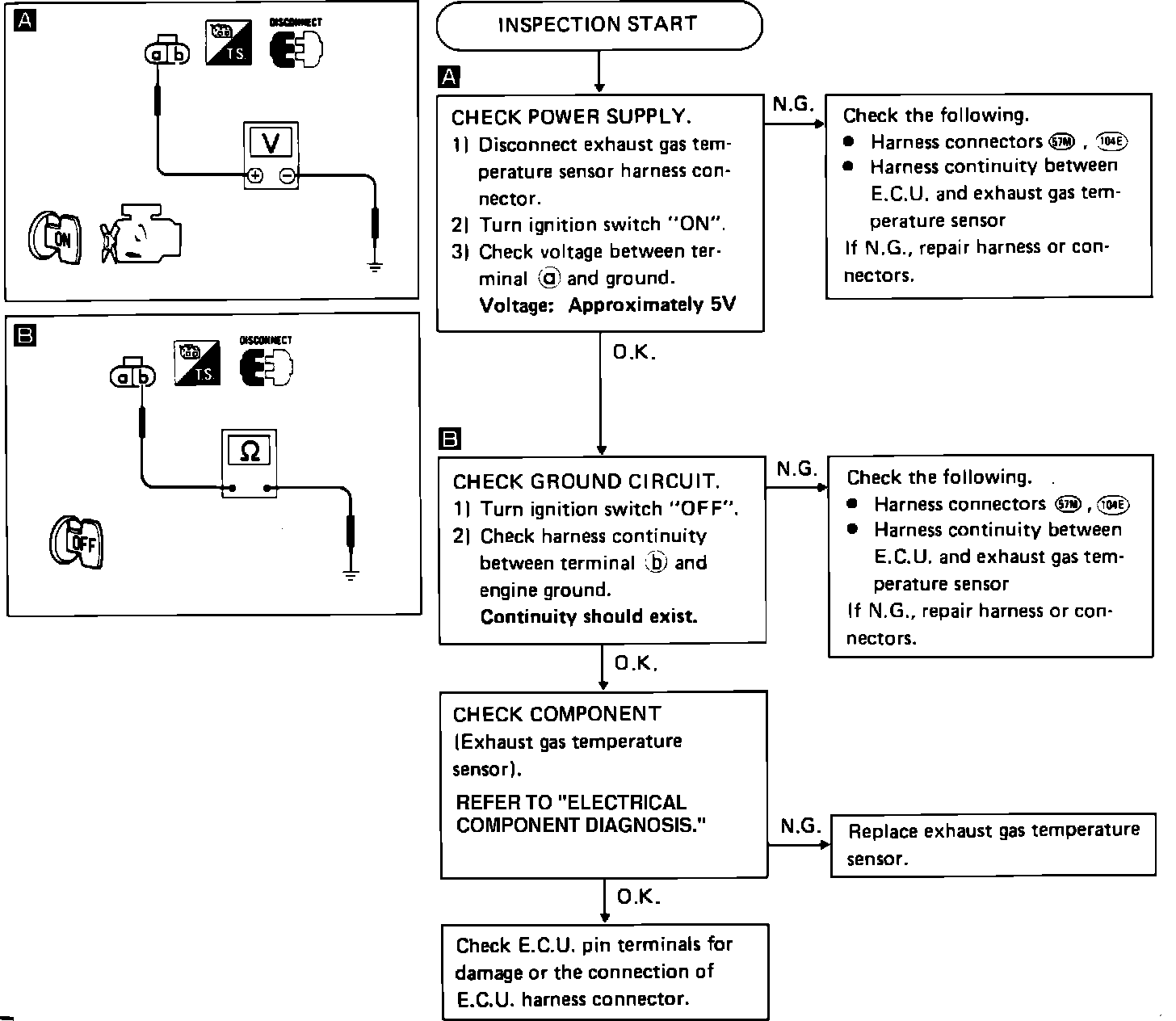

Code 35 EGR Temperature Sensor Diagnostic Chart:





DIAGNOSTIC CHART IMAGE

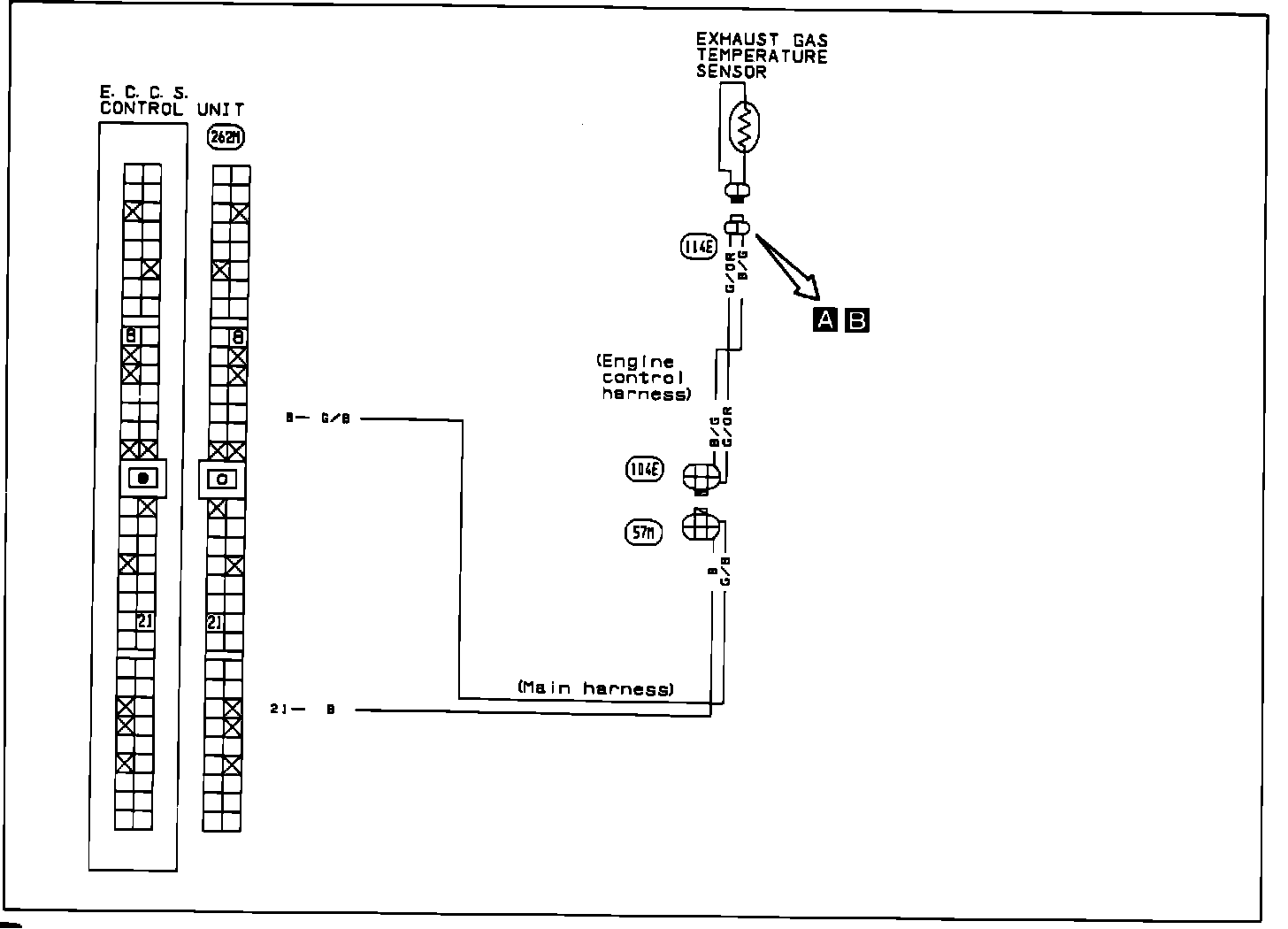

Circuit Diagram:





CIRCUIT DIAGRAM IMAGE

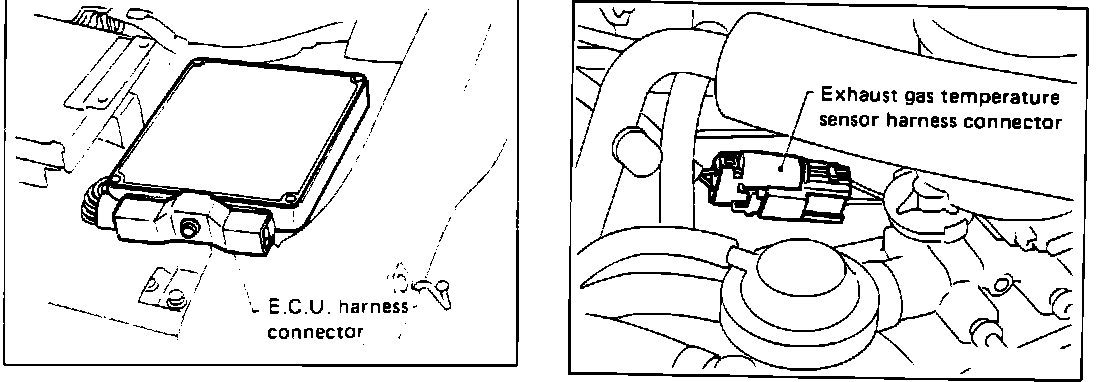

Connector Location:





ELECTRICAL CONNECTOR IMAGE
