DTC 14

The ECU detected an open circuit.

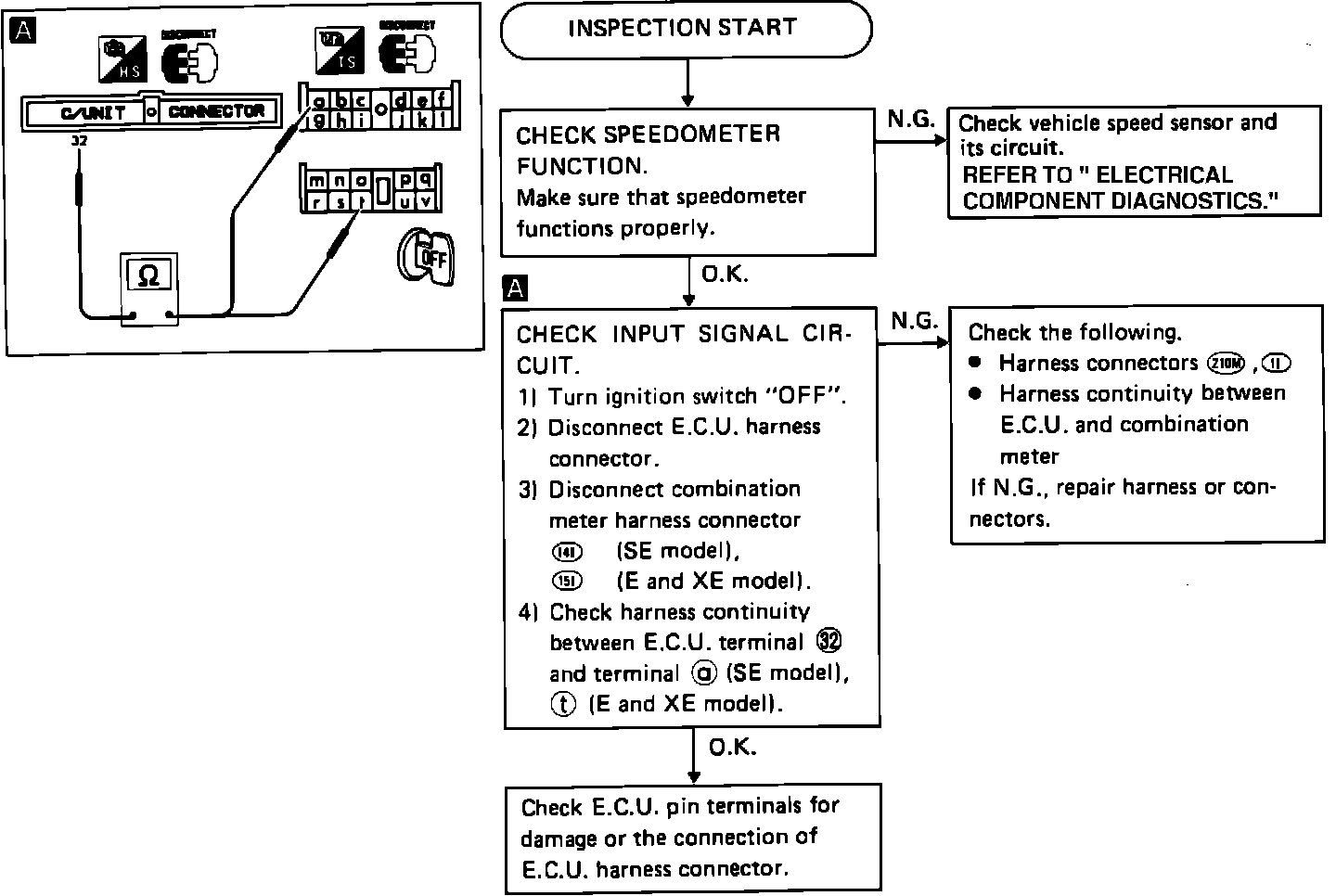

Code 14 Vehicle Speed Sensor Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

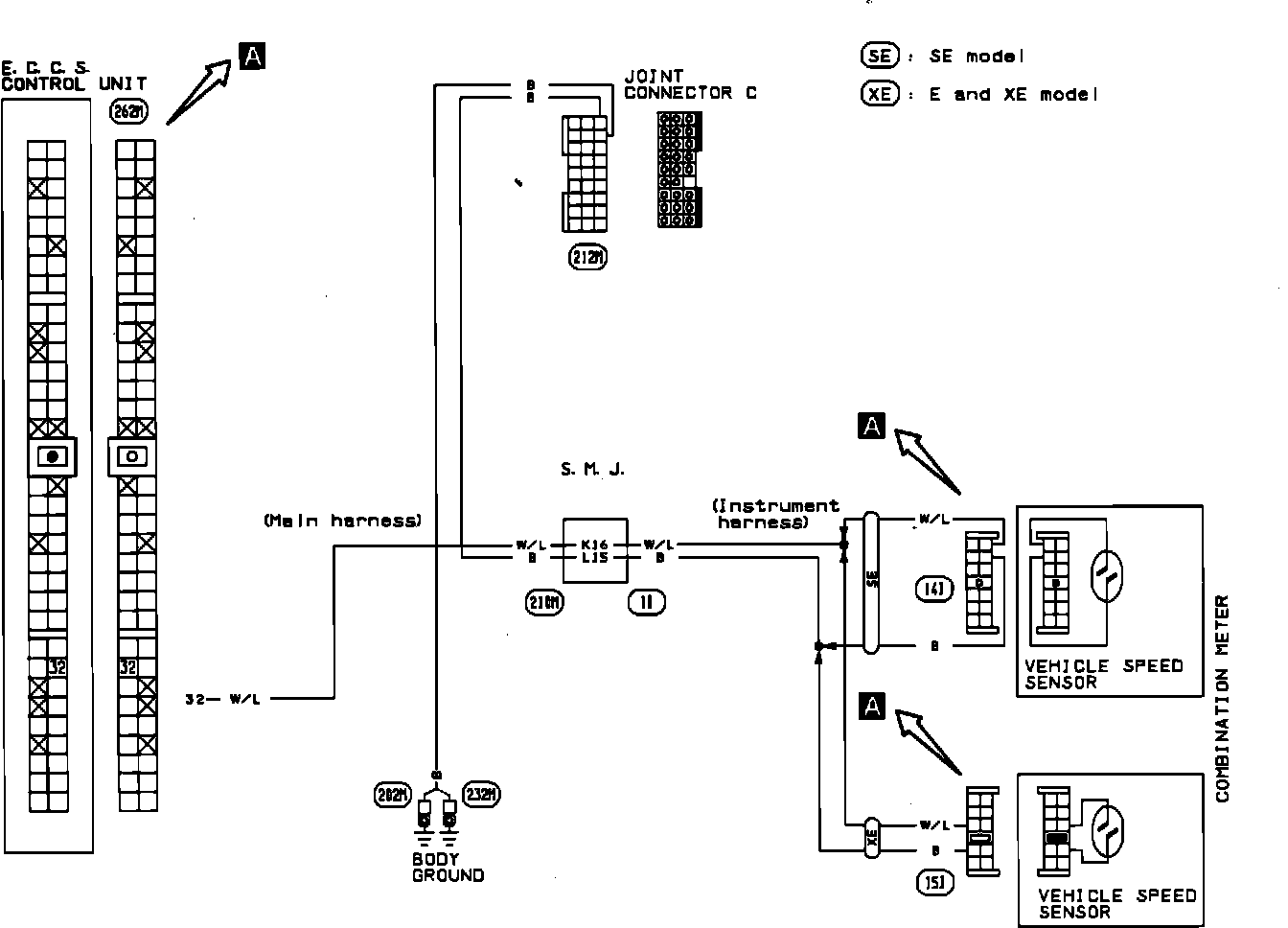

Circuit Diagram:

CIRCUIT DIAGRAM IMAGE

Final Check Diagnostic Chart:

FINAL CHECK IMAGE
