DTC 12

The ECU detected an open or shorted circuit. (An abnormally high or low voltage is entered.)

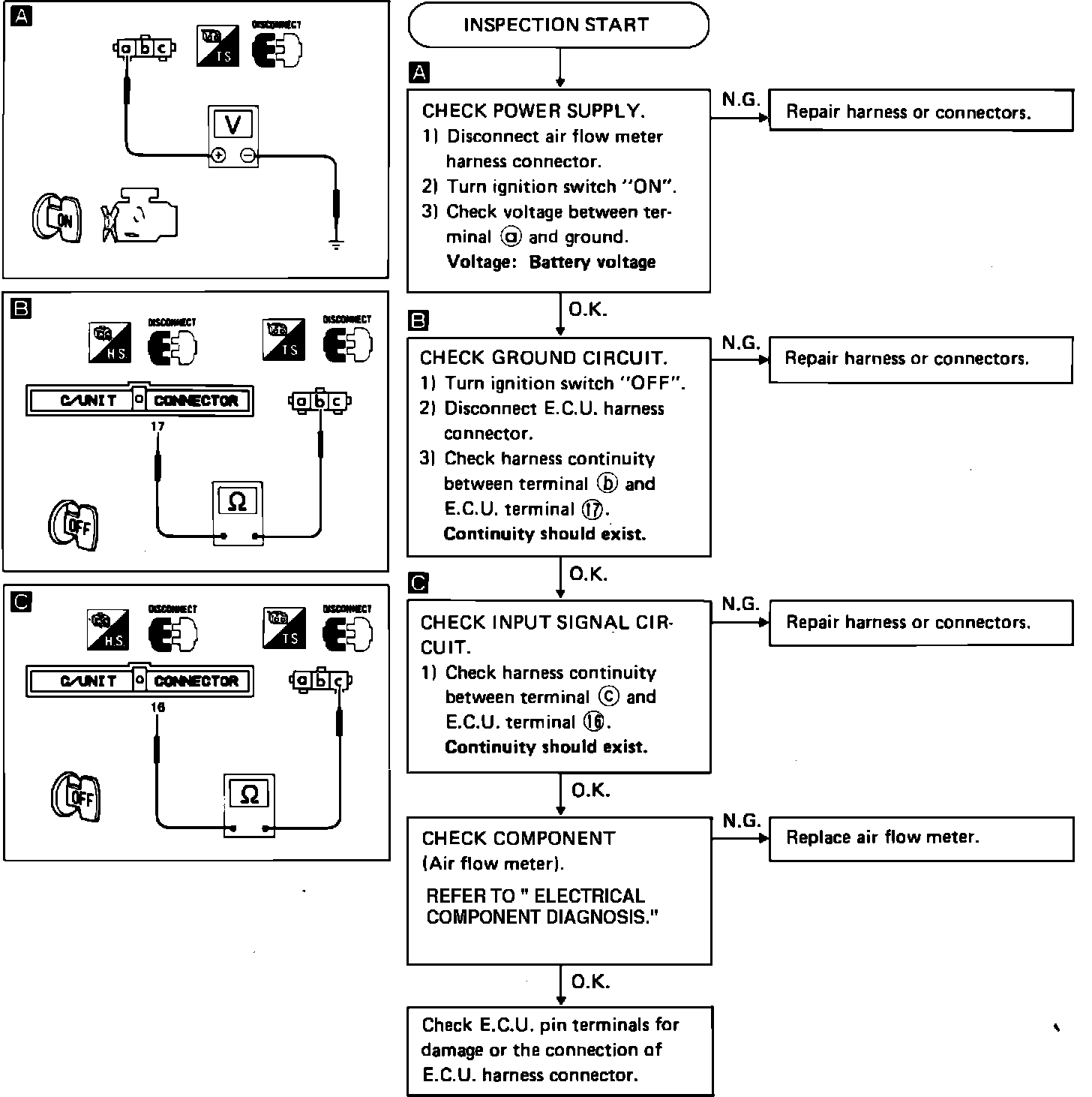

Code 12 Air Flow Meter Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

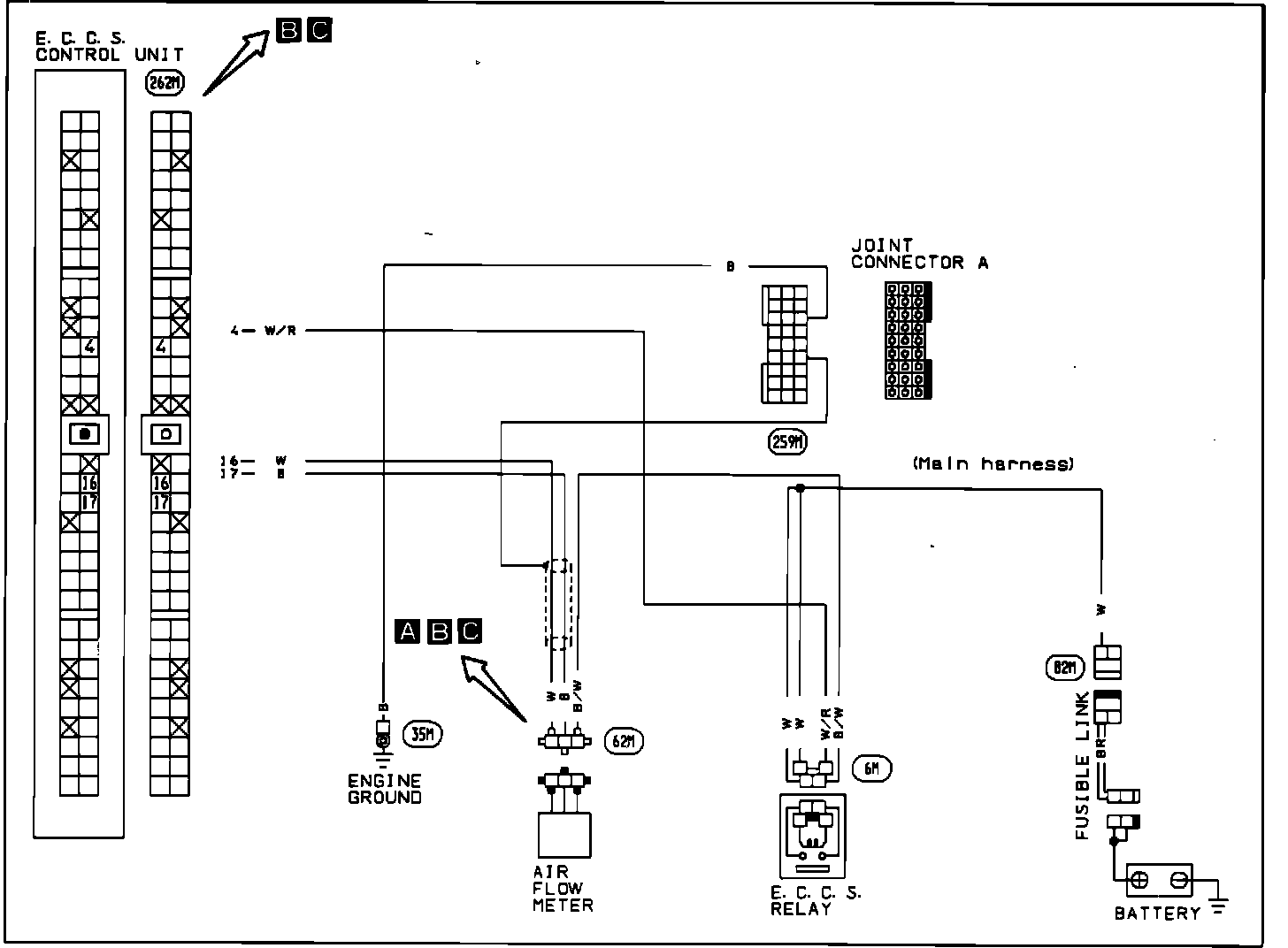

Circuit Diagram:

CIRCUIT DIAGRAM IMAGE

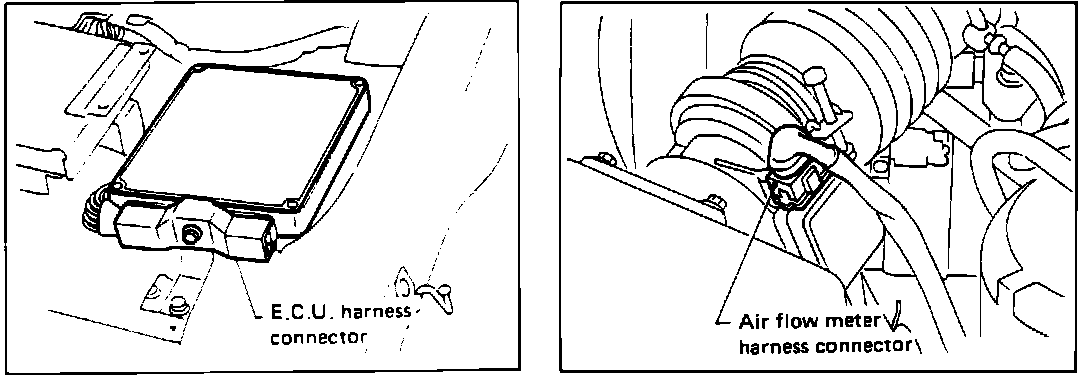

Connector Location:

ELECTRICAL CONNECTORS IMAGE

Final Check:

FINAL CHECK IMAGE
