Key Lock Solenoid

Key lock solenoid

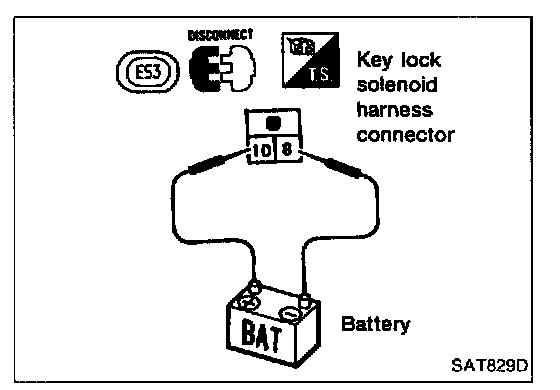

Operation Of Locking Mechanism



- Check operation by applying battery voltage to key lock solenoid harness connector.
- Operating sound must be emitted.

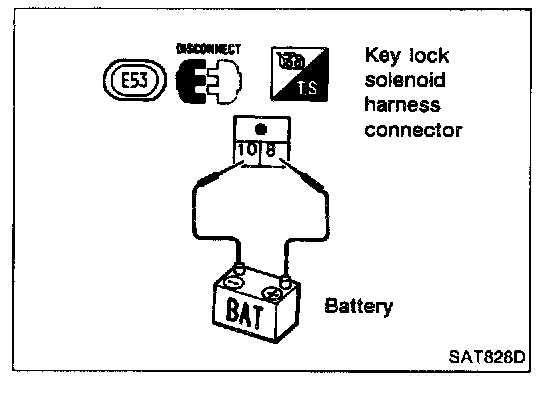

Operation Of Unlocking Mechanism



- Check operation by applying battery voltage to key lock solenoid harness connector.
- Operating sound must be emitted.
