Output Shaft and Idler Shaft

OUTPUT SHAFT AND IDLER SHAFT

DISASSEMBLY

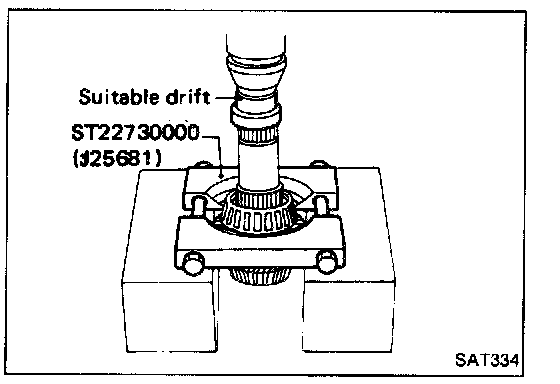

1. Remove inner cones from output shaft.

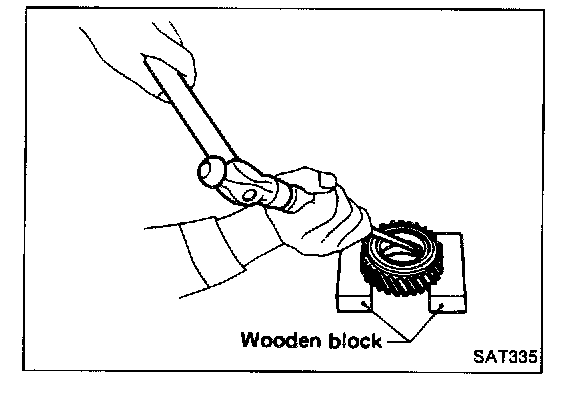

2. Remove outer races from idler gear.

INSPECTION
- Check all gears for excessive wear, chips or cracks; replace as required.
- Check shaft for bending, crack, wear, and worn spline; if necessary, replace.
- Check bearing to see that it rolls freely and is tree from noise, crack, pitting, or wear.

ASSEMBLY

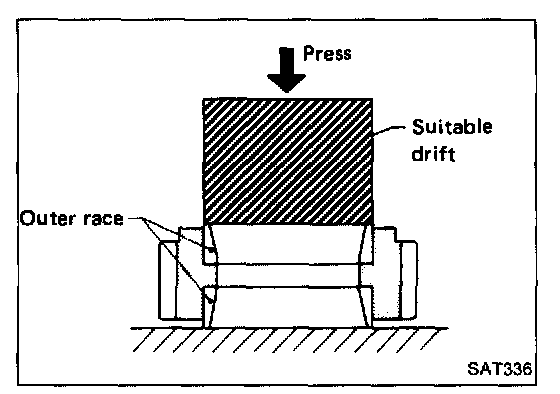

1. Install outer races on idler gear.

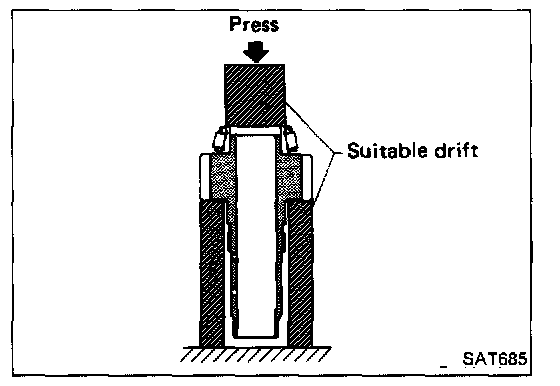

2. Install inner cones on output shaft.
