Control Valve Assembly and Accumulator

CONTROL VALVE ASSEMBLY AND ACCUMULATOR

REMOVAL

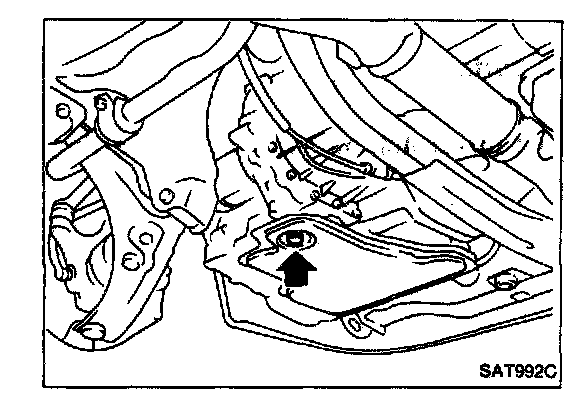

1. Drain A.T.F. from transaxle.

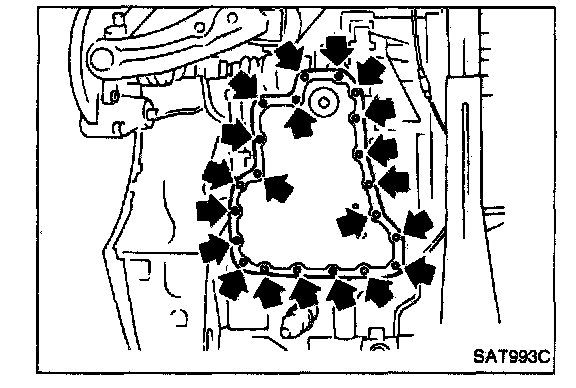

2. Remove oil pan and gasket.

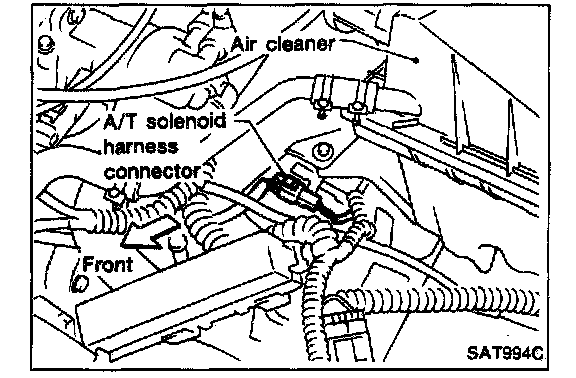

3. Disconnect A/T solenoid harness connector.

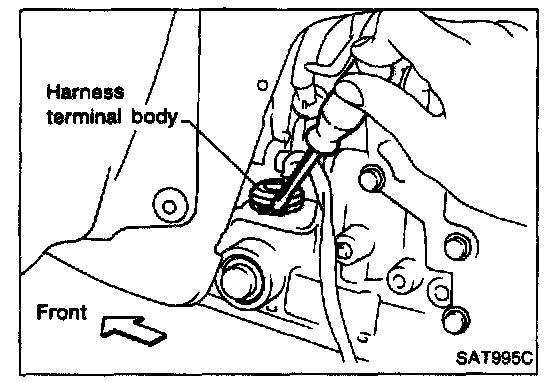

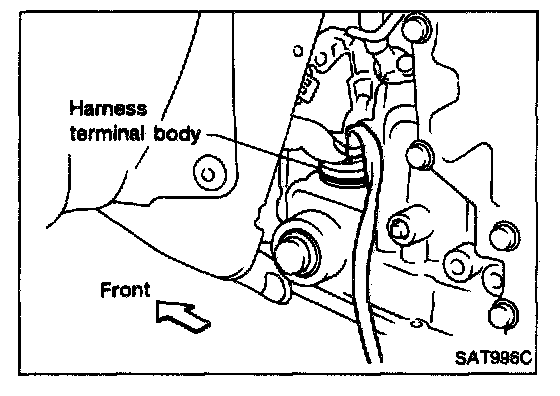

4. Remove stopper ring from A/T solenoid harness terminal body.




5. Pull out A/T solenoid harness from transmission case by pushing terminal body.

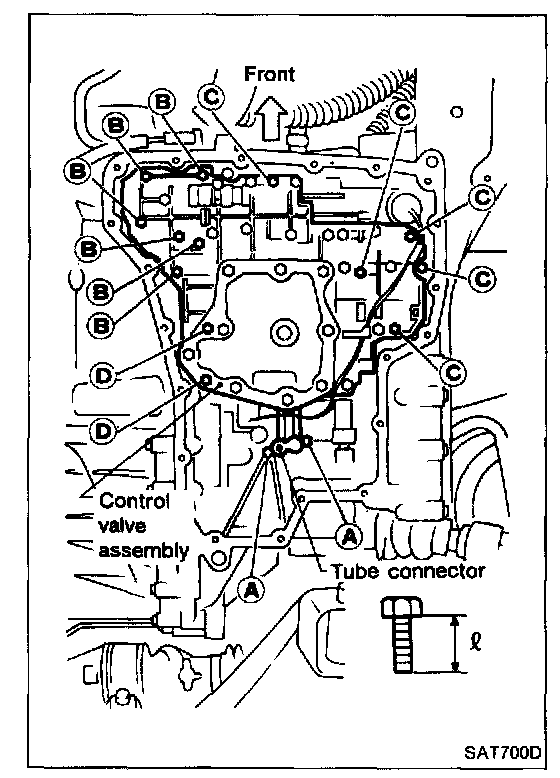

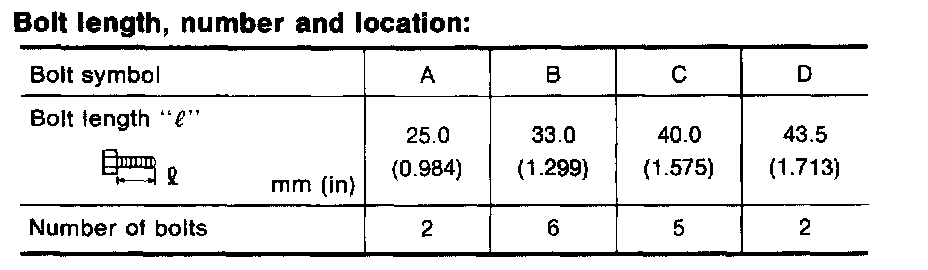

Bolt Length, Number And Location::

6. Remove control valve assembly by removing fixing bolts.
- Be careful not to drop manual valve, tube connector, tubes and 2-3 accumulator return spring.

7. Disassemble and inspect control valve assembly if necessary - Refer to "REPAIR FOR COMPONENT PARTS".

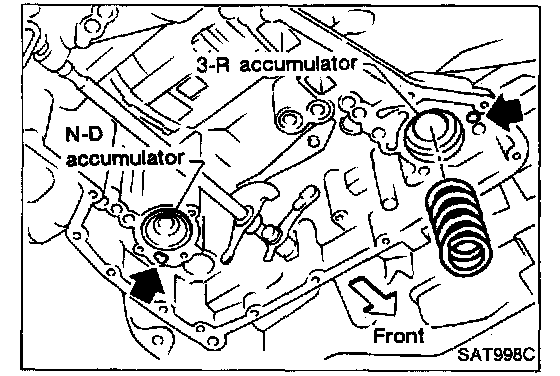

8. Remove 3-R and N-D accumulators by applying compressed air if necessary.
- Hold each piston with a rag.

INSTALLATION

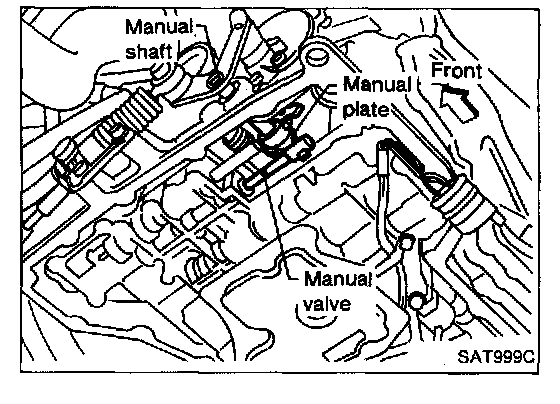

- Set manual shaft in Neutral, then align manual plate with groove in manual valve.
- After installing control valve assembly to transmission case, make sure that selector lever can be moved to all positions.
