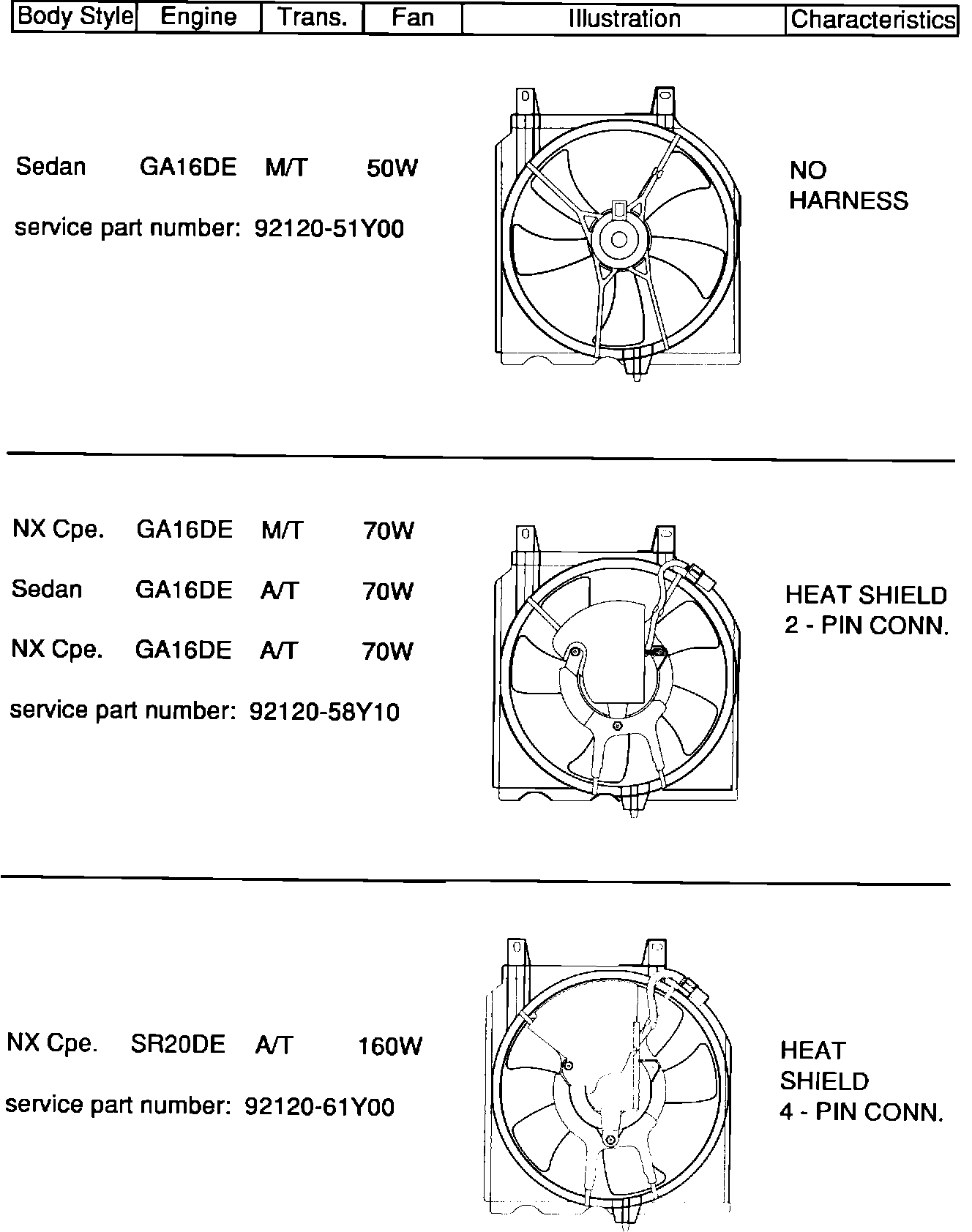

Condenser Fan Matrix - Canadian Specification Vehicles

NOTE:

The NX GA16DE with manual transmission uses a 110W condenser fan with a sub-harness, causing it to act as a 70W fan. The 110W fan, in this vehicle only, can be serviced with a 70W fan as a replacement if necessary.

A/C system B7000-69Y00, uses a 70W condenser fan. This fan is installed in all M/T Sentra/NX vehicles with SR20DE engines. During A/C installation in A/T NX Coupes with the SR20DE engine, this fan is discarded and substituted with the 160W fan sub-kit.
