Front

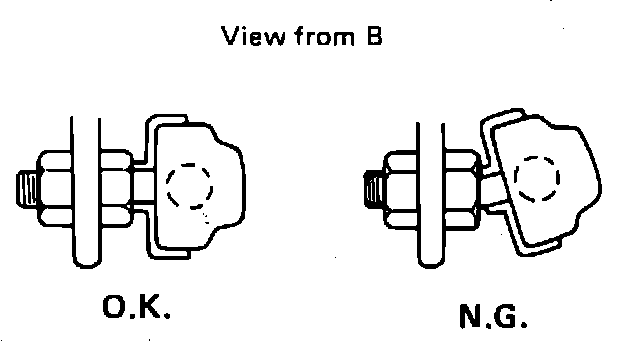

Fig. 14 Installing Stabilizer Bar Ball Joint Sockets:

1. Remove front exhaust tube.
2. Remove stabilizer bar attaching bolts and nuts, then remove stabilizer bar.
3. Reverse procedure to install, noting the following:
a. Install stabilizer rear side bushing then the front bushings.
b. Install stabilizer bar with ball joint socket as shown, Fig. 14.
