Inhibitor Switch

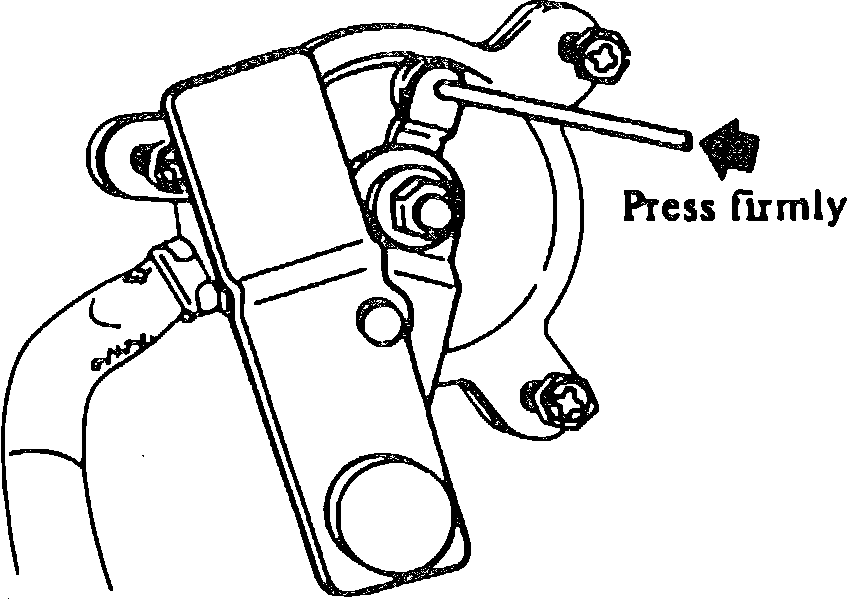

Fig. 6 Adjusting Inhibitor Switch:

1. Loosen inhibitor switch attaching screws.
2. Place selector lever at ``N.''
3. Insert a .098 inch diameter pin into adjustment holes in both inhibitor switch and switch lever as near vertical as possible, Fig. 6.
4. Torque attaching screws to 1.4-1.9 ft. lbs.
